Home > Products > LED Pixels Modules String > Programable 36mm 6leds LED Pixel (UCS1903)
Programable 36mm 6leds LED Pixel (UCS1903)
- 500000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
Hot selling waterproof rgb led pixel light with diameter 35mm 9pcs smd5050
-
SMD 5050 LED Pixel light led rgb pixel light 35mm diameter 9pcs
-
single color smart led light smd 5050 rgb led 20mm with Factory price
-
Programmable Addressable Color Changing 20Mm Led Pixel ws2811
-
parallel connection led modules waterproof IP67 DC 12V Led pixel modules Diameter 30mm DMX512 led modules
-
ws2801 led modules waterproof IP67 DC 12V Led pixel modules Diameter 30mm led modules
Product Details
| Model Number | BTF-D36 | Emitting Color | Other, full color | |
| Luminous Flux(lm) | 60 | Power | Other, 1.44W / pcs | |
| Storage Temperature(℃) | -45, 60 | Place of Origin | Guangdong, China | |
| Brand Name | BTF-Lighting | Certification | CE |
Product Description

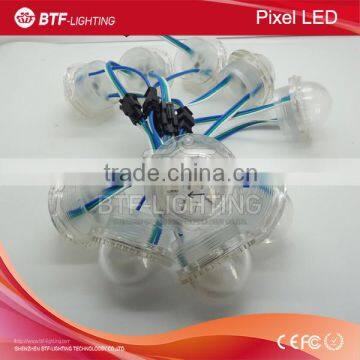

Programable 36mm LED Pixel (UCS1903)
Feature:
1. Individually control: 1PCS LED pixel & 1IC (UCS1903)
2. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
3. Combination: PVC shell(thermostability, cold-resistant, resistant to UV) and PCB board, connector cables...
4. Waterproof: Yes IP65, with silicon glue waterproof protection.
5. Installation: Easy to install, you'd better drill the hole about 36 - 40mm.
6. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
7. Power supply: You must use a 24V DC power supply to power this pixel, do not use higher than 25V
or you can destroy the entire pixel.
8. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC24V+, GND-,
each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
10. Brand: iPixel LED
Specification:
| Product Name | 35mm 6LEDs/pcs led pixels |
| Product No. | P356V24 |
| LED Chip | Epistar SMD 5050 RGB LED chip |
| IC Chip | UCS1903 |
| Input Voltage | DC24V |
| Watts | 1.44W/PCS |
| Cover Color | transparent cover, Milky cover |
| Connectors | 3PIN JST, also can be waterproof connectors |
| Beam angle | 140 |
| Certification | CE, RoHS |
| LED Qty | 6LEDs/pcs |
| Cable Length | 10cm usually, also can be customized |
