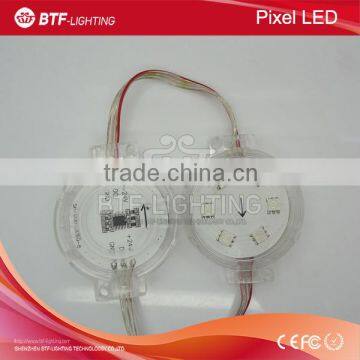

ucs1903 ws2811 ws2801 LPD6803 DMX512 30mm led pixel light

FOB Price

US$ 1.2 - 2 / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1. Adpots high quality SMD5050 LED as lighting source.

2. With good proection level. can achieve IP68.

3. each module as one pixel, takes 3 dmx channels,RGB full color,can be controlled individually,

4. It is easy installation, screw fixed.

5;good looking,made with the injection machine.

6;using the transparent cabe,with good cold resistance ability

7:works with dmx matrix controller,or SPI pixel controll,on-line controller.etc

Specification:

Part No	BTF-D40 , UCS1903 , ws2811, DMX512, SM16703
Color	full color RGB each module as one pixel;takes 3dmx channels
LED Qty	6pcs high bright 5050 smd rgb led
Input Volt	DC24V
Max current	60MA
Max Power	1.44W
Driver method	Constant current circuit
Dimension	40mm diameter
Viewing angle	150-180degree
Protection Level	IP68
Certification	CE and RoHS
Standard connection	20pcs module per string
Standard wire length	150MM(from side to side)
Housing	flat clear cover
Fixed way	screw
Lifespan	50000 hours
Warranty	2years
Operation temperature	-40-50
Store temperature	-50-60
