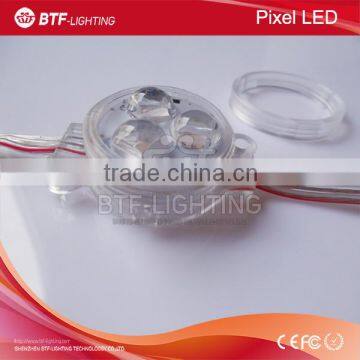

newest clear lens cover housing ucs1903 ws2811 ws2801 LPD6803 DMX512 30mm led pixel light

FOB Price

US$ 0.65 - 1 / Piece

20 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

DESCRIPTION:

1. Individually control: 1PCS LED pixel & 1IC (UCS1903)

2. Waterproof: Yes IP66, with silicon glue waterproof protection.

3. Installation: Easy to install, you'd better drill the hole about 30-31mm.

4. Power supply: You must use a 12V DC power supply to power this pixel, do not use higher than 13V

or you can destroy the entire pixel.

5. Connetors: 3PIN JST female and male connectors, also can be waterproof connectors, DAT, DC12V+, GND-,

each led pixel is seperate, you can connect them one by one via male and female connectors easliy.

6. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing

and scanning etc. depending on the different installation methods may compose different dynamic

effect of different color's character and design

7. Factory sales directly, good quality and price, offer 2 years warranty and quikly after-sale service.

8. Brand: iPixel LED

SPECIFICATION:

Product Name	30mm 3LEDs/pcs led pixels with clear lens
Product No.	P30V12-C
LED Chip	Epistar SMD 5050 RGB LED chip
IC Chip	ucs1903, ws2811, ws2801, LPD6803, DMX512
Input Voltage	DC12V
Watts	0.72W/PCS
Cover Color	Clear lens cover
Connectors	3PIN JST, also can be waterproof connectors
Beam angle	140
Certification	CE, RoHS
LED Qty	3LEDs/pcs
Cable Length	10cm usually, also can be customized
