wheel loader 953 high performance high quality
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Brand Name | ZOT | |
| Model Number | 953 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 7920"*3050*3400mm | Rated Load | 17100KG | |
| Certification | CE GOST | Warranty | 1 year |
Product Description
Specifications
Wheel Loader 5t:1)CUMMINS engine;
2)Rated power:160kw;
3)Rated load: 5t;
4)Operating weight:17.1t;
wheel loader 953 high performance high quality

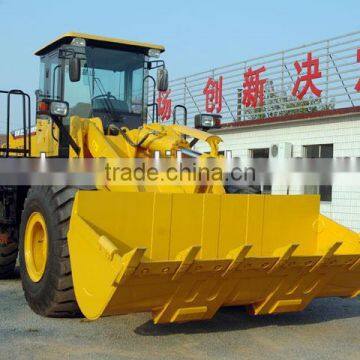

PHOTOS:
SPECIFICATIONS:
rated load | 5000kg |
overall weight | 17100kg |
rated bucket capacity | 3m3 |
maximum tractive force | 152KN |
maximum breakout force | ≥170KN |
maximum grade ability | 30°C |
maximum dump height | 3150mm |
maximum dump reach | 1250mm |
overall dimension (L×W×H) | 7920×3050×3400mm |
minimum turning radius | 6640mm |
model | WD615G.220 |
type |
lnline water cooling dry cylinder injection |
No. of cylinder-bore/stroke | 6-126×130mm |
rated power | 160kw--2200r/min |
maximum torque | 860N.m |
min fuel-consume ratio | ≤215g/kw.h |
torque converter | HangchiWG180 (ZF technology) |
gearbox mode | Power shift normally engaged straight gear |
gear shift |
4 forward shift 3reverse shift |
maximum speed | 38km/h |
main reducing spiral
|
bevel gear grade 1reduction |
decelerating mode | planetary reduction,grade 1 |
wheel base (mm) | 3200mm |
wheel tread | 2250mm |
minimum ground clearance | 450mm |
system working pressure | 18MPa |
boom lifting time | 5.95±0.2s |
total time | 10.95±0.5s |
fuel tank capacity | 300L |
function of leveling automatically | yes |
service brake | air over hydraulic disc brake on 4 wheels |
parking brake | manual parking brake |
type specification | 23.5-25 |
front tyre pressure | 0.4Mpa |
rear tyre pressure | 0.35Mpa |
