Product Details
| Condition | New | Brand Name | SDLG | |
| Model Number | LG956L | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 8020x3020x3350 | Rated Load | 5TON | |
| Certification | GOST,CE,ISO | Warranty | 18MONTHES | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.equipped with Shanghai C.AT C6121 diesel engine,2.Pilot control,A/C,
3.pipular for Libya,Brazil and Russia markets

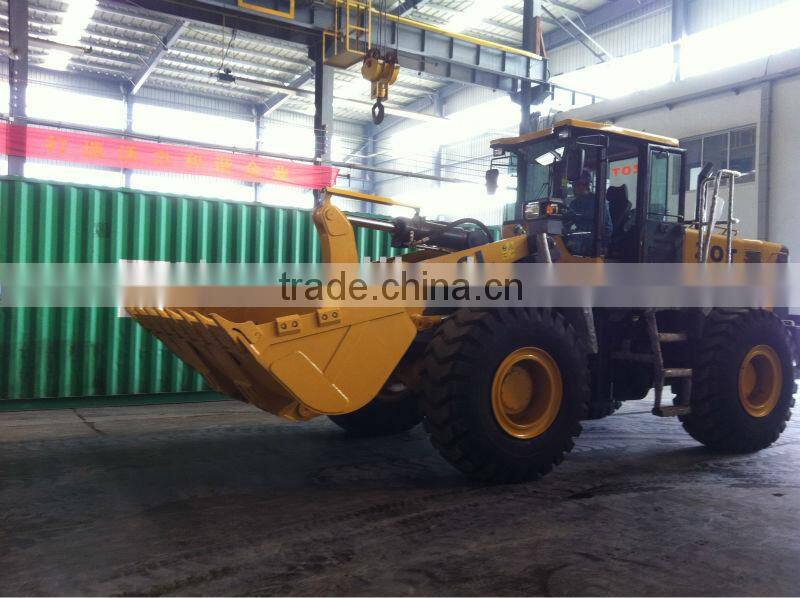

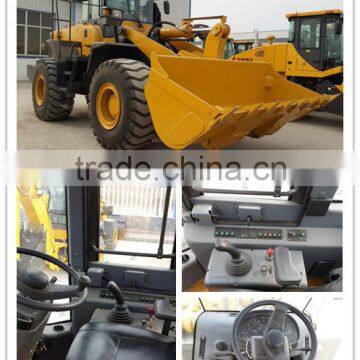

G956L WHEEL LOADER
EQUIPPED WITH
CHINA WEICHAI POWER WD615/C.AT DIESEL ENGINE,
SDLG TRANSMISSION,SDLG AXLES,3.0CBM BUCKET,CABIN WITH WARMER MACHINE.
PRICE:46,800USD-52800 PER UNIT FOB CHINA PORT.
MOQ 1 UNIT.
ONE UNIT PUT INTO ONE 40HQ CONTAINER.
WARRANTY:12MONTHES
PAYMENT:T/T.or L/C
DELIVERY TIME:20WORKING DAYS AFTER GETTING DEPOSITS.
Note :
The pictures displayed by our company are photographed with our real goods.
Besides, influenced by the factors from the environment and the equipments, color differences are unavoidable on display
SHANONG ZOT MACHINERY CO.,LTD
Reliable In Actions.
1,Technical features
Item | Performance | Item | Performance | |||||
Standard bucket capacity (m3) | 3.0 | Min. turning radius outside rear wheel (mm) | 6178 | |||||
Rated load (kg) | 5000 | Min. turning radius outside bucket (mm) | 6888 | |||||
Max. traction force(by engine)(kN) | ≥150.0 | Max. break force(kN) | ≥160.0 | |||||
Static tipping load (kN) | ≥100 | Grade ability (°) | 28 | |||||
Travel speed | Speeds | 1 | 2 |
|
| |||
Forward (km/h) | 0~13.5 | 0~38 | —— | —— | ||||
Reverse (km/h) | 0~17 | —— | —— | —— | ||||
2,Dimension and weight
Item | Performance | Item | Performance |
Length(with bucket on ground) (mm) | 7717 | Bucket Width (mm) | 3030 |
Height (mm) | 3378 | Tread (mm) | 2190 |
Width from outside wheel (mm) | 2785 | Wheelbase (front/back)(mm) | 2920(990/1930) |
Min. ground clearance (mm) | 534 | Operating weight (kg) | 16500 |
Max Dumping height(-50ºdump angle) (mm) | 3050 | Axles | 2 |
Dumping distance(-500dump angle)(mm) | 1148 |
|
|
3,Engine
Item | Performance | Item | Performance |
Model | WD615 67G3-36/CAT 3306B CUMMINS 6CT8.3 | Cylinder No. | 6 |
Type | Straight-lined, water cooled, dry cylinder coat, direct injection | Cylinder bore/stroke(mm) | 126/130 |
Rated power (/kW) | 162 | Min fuel consumption ration (g/kW.h) | ≤215 |
Rated rpm(r/min) | 2200 | Max torque (N.m) | 843 |
Displacement(ml) | 9.726 | Emission standard | JB/T8891 |
4,Transmission
Item | Performance | |||
Torque converter | Type | Single phase, 4 element, double turbo hydraulic converter | ||
Torque ratio | 4.19 | |||
Cooling system | Circulated, watercooled | |||
Inlet oil pressure(MPa) | 0.549~0.6 | |||
Outlet oil pressure(MPa) | 0.275~0.343 | |||
Gearbox | Type | Planetary power shift | ||
Shift | Forward 2,Reverse 1 | |||
Gear ratio | Forward I | 2.155 | ||
Forward II | 0.578 | |||
Forward III | —— | |||
Forward I V | —— | |||
Reverse I | 1.577 | |||
Reverse II | —— | |||
Model | CB130 | |||
Working pressure (MPa) | 1.1~1.5 | |||
Main drive | Type | Single stage, spur gear | ||
Gear ratio | 5.286 | |||
Final reducer | Type | Single stage,planetary shift | ||
Gear ratio | 4.4 | |||
Driving axle and tire | Type | Driving axle and tire | ||
Tire specification | 23.5-25 | |||
Tire pressure(MPa) | Front wheel | 0.333~0.353 | ||
Rear wheel | 0.275~0.294 | |||
Brake system | Service brake | Air over hydraulic disc brake on 4 wheels | ||
Pressure (MPa) | 0.45~0.68 | |||
Parking brake | Air-room braking | |||
5,Steering system
Item | Performance |
Type | Core-closed, full-hydraulic redirector and flow increasing valve |
Pilot-acinated valve | YXL-F250F |
Pump | CBGjA2080G |
Steering cylinder: cylinder bore×piston rod diameter×stroke (mm) | 90×45×360 |
Redirector | BZZ-100 Core-closed, full-hydraulic redirector |
Steering angle (°) | 35° |
Working pressure(Mpa) | 14MPa |
6,Working system
Item | Performance |
Type | Mechanical and manual control |
Boom cylinder - cylinder bore×piston rod diameter×stroke (mm) | 160×90×812.5 |
Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm) | 180×90×542 |
Pump | CBGj3166 |
Multiple directional control valve type | SD32-18,manual,pressure:18MPa |
Priority valve model | —— |
Working pressure | 18 MPa |
Lifting time(fully loaded) | ≤5.7s |
Lowering time, (empty,) | ≤3.5s |
Dumping time (empty,) | ≤1s |
Total | ≤10.2s |
7,Service refill capacities
Item | Performance | Item | Performance |
Fuel | 270L | Engine | 20L |
Hydraulic oil | 270L | Gearbox | 45L |
Axle (main drive and final reducer) | 27L | Brake system | 4L |

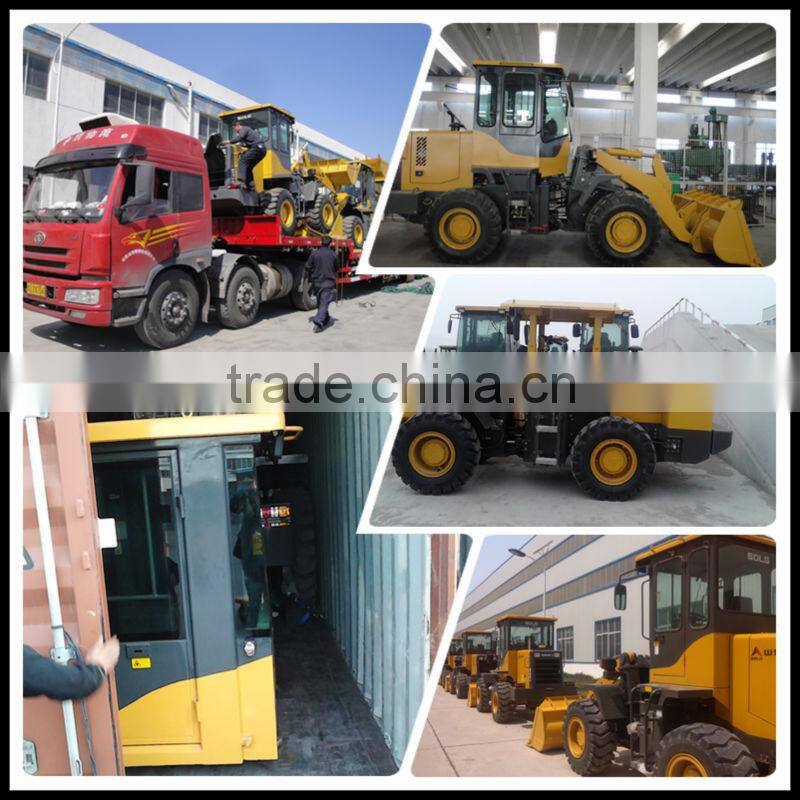

SHIPPING DETAILS:
Shandong ZOT Machinery Co.,LTD. which is specialized in the small scraper machinery, mining machinery, compaction machinery and paving machinery research and development, manufacturing and sales. Relying on Lingong group over forty years engineering machinery manufacturing mature experience and the support of comprehensive and leading product research and development system, Zhongte focus on the small units, high ratio of mechanical engineering research as well as providing simple solutions for clients.
The company will always put optimizing structure, improving the products quality and the reliability on the first place and implement the whole course quality control. The stability of the supporting system and strict parts access and the delivery inspection standards ensure the product quality and the function steadily improved, which has been widely recognized by customers both at home and abroad. ZOT products are exported to Russia, Brazil, Australia, Nigeria and other countries and regions. In the constant development and expansion, the company according to the features of customer requirements and years of market validation, timely introduced a new type of N series, G series small loader products, will become the leader of small scraper machinery.
We insist on the "ZOT machinery build beautiful homes" development philosophy, always adhere to the product diversification strategy and constantly centered on construction machinery, push the continual improvement, continually enrich the production lineup, promote the product quality and brand reputation, and build a domestic first-class and international renowned construction machinery base.
Advantage & Application
1.Chinese Cummins intercooled& turbocharged diesel engine;
2. Integral torque converter and gearbox(Germany ZF technology);
3. Driving axle with built-in free-wheel anti-slip differential;
4. Heavy-duty roller chains transmission balance box;
5.Popular swing-arm connecting rod operating mechanism;
6. Free-maintenance rolling-disc rotary device;
7. Double cylinders control the balde cutting angle;
8.Two sets of imported control valve (HUSCO Brand);
9. Imported hydraulic balancing valve for the blade lifting;
10. Steering system:center articulated mechanism and tilting front wheels to achieve crab-style movement;
11. Electro-hydraulic control: instrumentation monitoring & maintenance-free OPTIMA battery;
Our Services
1.Reply your inquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available. OEM is welcome.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Do the best reliable heavy-duty single drum vibratory road roller in China.
7.Warranty period is 1-year or 1500 working hours against Bill of Lading.
Company and Products Information Related
ZOT.is the professional manufacturer, who carries an extensive range of new heavy duty equipments and agricultural machinery, such as road rollers, motor graders, crawler excavators, bulldozers, wheel loaders, forklifts, and wheel tractors with years of experience, strong R&D and engineering capabilities.
