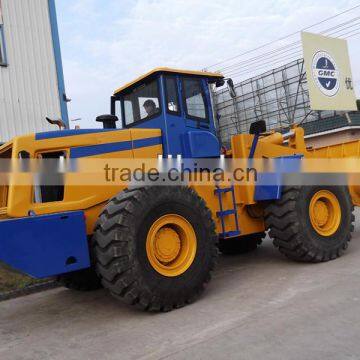

6t whee loader with CUMMINS engine, ZF transmission

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Wheel Loader 6t:
1)CUMMINS engine;
2)ZF transmission;
3)Rated power:175kw;
4)Rated load: 6t; Operating weight:18.2t;

6t whee loader 966 with CUMMINS engine, ZF transmission

PHOTOS:

SPECIFICATIONS:

rated load		6000KG
overall weight		18200KG
rated bucket capacity		3.8m3
maximum tractive force		158KN
maximum breakout force		204KN
overall dimension (L×W×H)		7965×3050×3470mm
maximum grade ability		30°C
maximum dump height		3448mm
maximum dump reach		1249mm
minimum turning radius		7020mm
model		Commins 6BTAA-C215
type		lnline water cooling dry cylinder injection
No. of cylinder-bore/stroke		6-126×130mm
rated power		175kw--2200r/min
maximum torque		950N.m
min fuel-consume ratio		≤220g/kw.h
torque converter		YJ375
gearbox mode(WG180)		Planectary
gear shift	forward shift	4 reverse shift
maximum speed		38km/h
:main reducing spiral		bevel gear grade 1reduction
decelerating mode		planetary reduction,grade 1
wheel base (mm)		3200mm
wheel tread		2250mm
minimum ground clearance		450mm
system working pressure		17MPa
boom lifting time		6.05+0.25s
total time		10.8+0.5s
fuel tank capacity		300L
function of leveling automatically		yes
service brake		air over hydraulic disc brake on 4 wheels
parking brake		manual parking brake
type specification		26.5-25
front tyre pressure		0.4Mpa
rear tyre pressure		0.35Mpa
