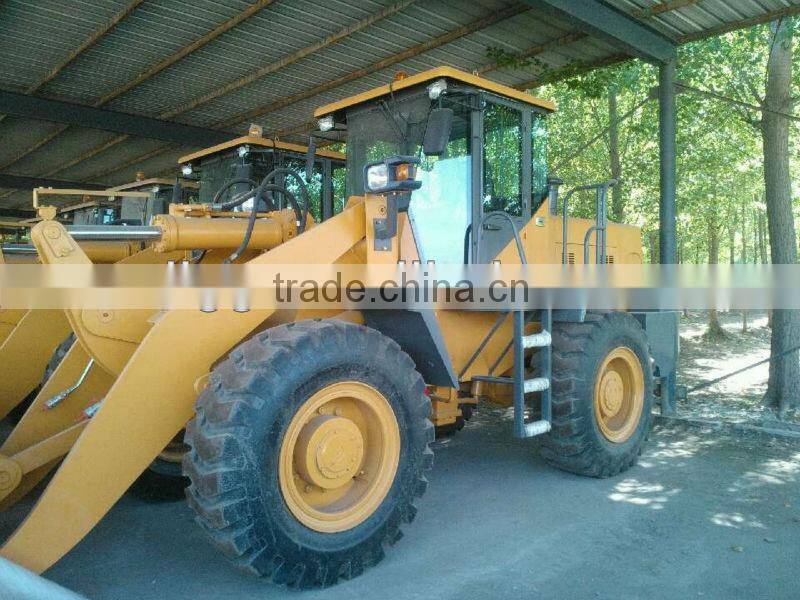

LG938L Same Wheel Loader With DEUTZ Engine ZF Technology Gearbox Popular for Libya

Item

Performance

Item

Performance

Standard bucket capacity (m³)

1.8

Min. turning radius outside rear wheel (mm)

5381

Rated load (kg)

3000

Min. turning radius outside bucket (mm)

5912

Max. traction force(by engine)(kN)

≥105

Max. break force(kN)

≥96

Static tipping load (kN)

≥66

Grade ability (°)

30

Travel speed

Speeds

I

II

III

IV

Forward (km/h)

0~7

0~12

0~27

0~35

Reverse (km/h)

0~7

0~12

0~27

——

Item

Performance

Item

Performance

Length(with bucket on ground) (mm)

7100

Bucket Width (mm)

2510

Height (mm)

3170

Tread (mm)

1865

Width from outside wheel (mm)

2310

Wheelbase (front/back)(mm)

2850(1250/1600)

Min. ground clearance (mm)

370

Operating weight (kg)

10700

Max Dumping height(-45ºdump angle) (mm)

3050

Axles

2

Dumping distance(-45⁰dump angle)(mm)

1148

Item

Performance

Item

Performance

Model

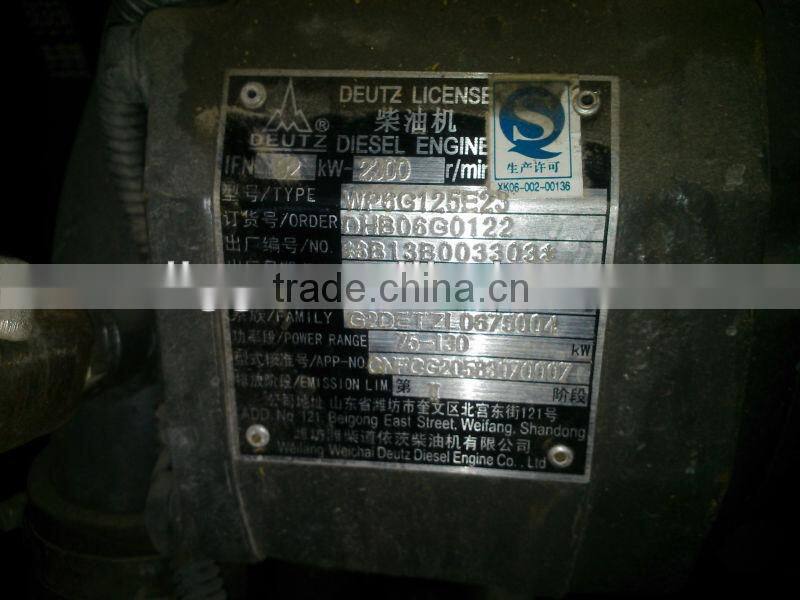

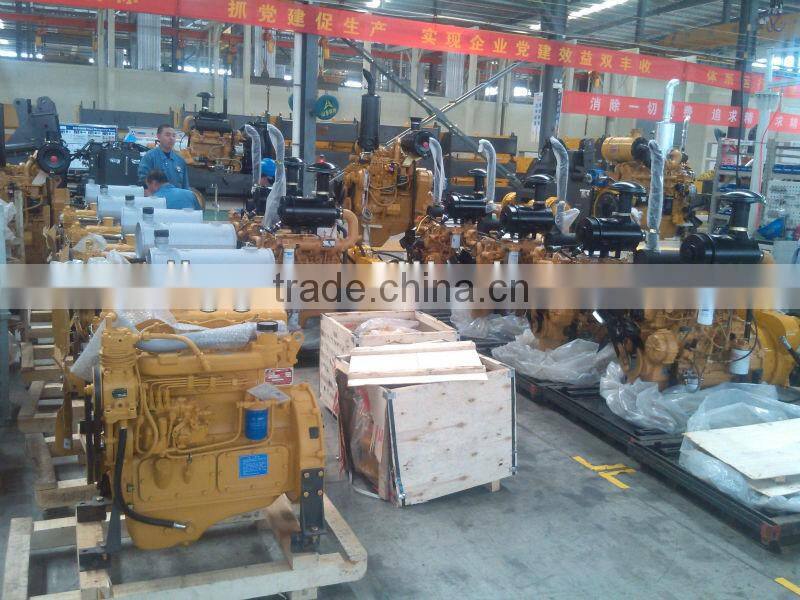

6BT5.9-C130,DEUTZ TD226B

Cylinder No.

6

Type

Straight-lined, water cooled, supercharged, electric control

Cylinder bore/stroke(mm)

102/120

Rated power (/kW)

97

Min fuel consumption ration (g/kW.h)

≤217

Rated rpm(r/min)

2200

Max torque (N.m)

542

Displacement(ml)

5.9

Emission standard

Eu stage II

Item

Performance

Torque converter

Type

Single phase, 3 element, single turbo hydraulic converter

Torque ratio

2.3

Cooling system

Circulated, watercooled

Gearbox

Type

Fixed shaft, electro-hydro shift

Shift

Forward 4,Reverse 3

Gear ratio

Forward  I

3.91

Forward II

2.304

Forward III

0.964

Forward IV

0.617

Reverse I

3.91

Reverse II

2.304

Reverse III

0.964

Model

Working pressure (MPa)

1.3~1.7

Main drive

Type

Single stage, spur gear

Gear ratio

6.167

Final reducer

Type

Single stage,planetary shift

Gear ratio

3.12

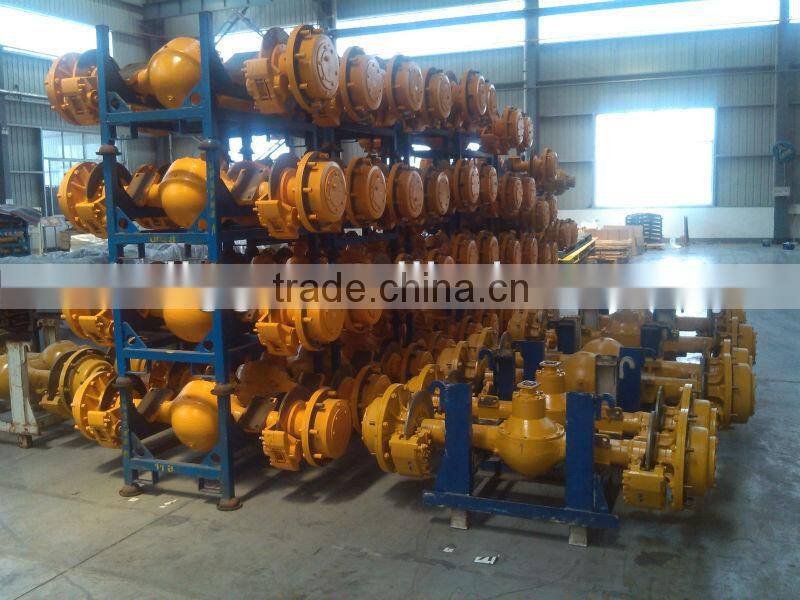

Driving axle

and tire

Type

Driving axle and tire

Tire specification

17.5-25

Tire pressure(MPa)

Front wheel

0.333~0.353

Rear wheel

0.275~0.294

Brake system

Service brake

Air over hydraulic disc brake on 4 wheels

Pressure (MPa)

0.45~0.68

Parking brake

Disc type braking

Item

Performance

Type

Core-closed, full-hydraulic redirector and flow increasing valve

Pilot-acinated valve

   VLE-150

Pump

CBGj2063

Steering cylinder: cylinder bore×piston rod diameter×stroke (mm)

HSGL-80×45×327

Redirector

BZZ6-E630

Steering angle (°)

38°

Working pressure(Mpa)

14MPa

Item

Performance

Type

Pilot control

Boom cylinder - cylinder bore×piston rod diameter×stroke (mm)

HSGF-125×70×771

Bucket cylinder- cylinder bore×piston rod diameter×stroke (mm)

HSGF-140×80×502

Pump

CBGj3100/1010C-XF

Multiple directional control valve type

D32A-16

Priority valve model

DXS-00/ HC-RCM/1

Working pressure

16 MPa

Lifting time(fully loaded)

≤5.3s

Lowering time, (empty,)

≤2.9s

Dumping time (empty,)

≤1.0s

Total

≤9.2s

Item

Performance

Item

Performance

Fuel

140L

Engine

16.3L

Hydraulic oil

130L

Gearbox

20L

Axle (main drive and final reducer)

2x16L

Brake system

4L
