Ronghua Cable 450/750V 3*2.5mm2 rubber flat cable waterproof cable for submersible pumps cable

450/750V 3*2.5mm2 rubber flat cable

Technical Index

   Product type : BPYC TML N-F

   Voltage class : 450/750V

   Rated temperature: Continuous working temperature under 90°C is allowed for the conductor.

   Voltage Text : 2500V

   Minimum bend radius: fixed installation : 4 times cable diameter

   Mobile installation : 5 times cable diameter

   Standard: CCC applied to IEC60245—4 standard

          CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE

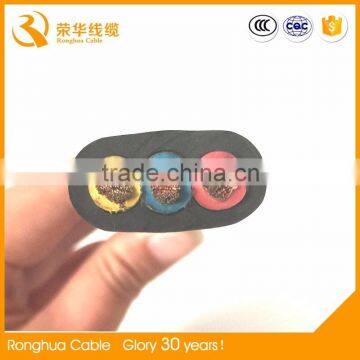

Cable Structure

conductor material : Stranded flexible fine twisted pure copper wire

   insulation material: EPR or Natural rubber

core color : colorful core

sheath material : EPR or Natural rubber

 Application

ERP sheath cable is suitable for the connecting cable of drinking water, industrial water and underwater electrical. The rubber sheath cable is suitable for track system, especially for the working environment of repeated mobile and strong bending working environment with hoist, elevator and drum machine.

 Product Performance

This product can be used under water for a long term,and it also fit the environment protection requirement.

We can produce many other kinds of cables according to customers requirements.
