Home > Products > Rubber insulated cable > Flat Submersible Cable /Pump Cable with Ground

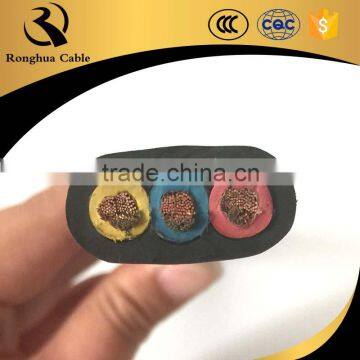

Flat Submersible Cable /Pump Cable with Ground

FOB Price

US$ 0.1 - 80 / Meter

500 Meters(Min. Order)

Port Tianjin Xingang
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Ronghua
Model Number	JHS/JHSB	Insulation Material	Rubber
Type	Low Voltage	Application	Other, submersible motor pump
Conductor Material	Other, Copper, Fine annealed copper class5/6	Jacket	Other, Rubber, EPDM, Compound rubber

Product Description

^{Features
Meets the requirement of UL - 83 IEC 60245, DIN VDE 0282 PART 810, BS 6007 & BS 6899
600 volts, 90° C Dry & Wet
Designed for heavy duty use
Temperature range -40° to 90°
ROHS compliance (lead free)
Flat submersible 600 V pump cable suitable for use within deep well fresh or salt water submersible pumps.
Contraction - Rubber AWG Pump Cables Class C Flexible, bare copper
Insulation : PVC or Rubber
Sheath : PVC or Rubber
Colour Code : Black - Yellow - Red (Without Ground)}
Black - Yellow - Red - Green (With Ground)

4 core flat type submersible pump cable

3 core round type rubber sheathed ESP cable

Flat Jacketed Submersible Pump Cables Without Ground
Conductor Size AWG	NO. Of Conductor	NOS OF Dia. Of wire	Core Dia	Sheath Thickness (MM)	Cable Dia.
14	3	41/0.254	3.85	1.15	14.60*6.40
12	3	65/0.254	4.50	1.15	16.80*7.40
10	3	105/0.254	5.30	1.15	18.70*7.90
8	3	168/0.254	6.50	1.40	23.70*9.90
6	3	226/0.254	8.00	1.40	28.00*11.40
4	3	420/0.254	10.10	2.00	35.50*14.70
2	3	665/0.254	11.30	2.00	39.50*16.20
1	3	817/0.254	13.60	2.20	45.50*18.30
1/0	3	1045/0.254	13.60	2.20	45.50*18.30
2/0	3	1330/0.254	16.60	2.20	51.00*20.00
3/0	3	1672/0.254	18.00	2.40	60*23
4/0	3	2116/0.254	19.8	2.65	65*25

Packing & Delivery

Packing

Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Delivery

Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Certifications

Company Introduction

Hebei Ronghua Wire And Cable Co.,LTD, established in 1984, a professional manufacture of various types cables, mainly rubber sheath flex cable, welding cable, waterproof cable, H/M/L voltage power cables, house wiring electric wire and etc. As a professional Welding Cable Manufacture, we could provide the competitive price and control the delivery in time.
