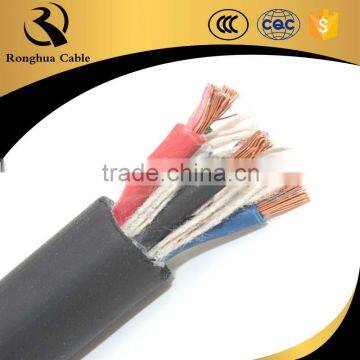

UL Approval Rubber Cable SJ/SJO/SJOW/SJOO/SJOOW
- Tianjin
- T/T
You May Like
-
CCC Approval Rubber Cable YC/YCW
-
Single Core Welding Machines Used Super Flexible Electric Welding Cables
-
Submersible water pump cable flat rubber insulated
-
35mm2 50mm2 70mm2 95mm2 120mm2 185mm2 super flexible copper core electric power welding cable price
-
RTI-1 or RTI-2-CL flexible 450/750v 4 core rubber cable 16mm
-
1.5mm2-400mm2 Low price 60245IEC66 YCW Rubber Cable H07-RNF
Product Details
| Place of Origin | Hebei, China | Brand Name | Ronghua | |
| Model Number | SJ/SJO/SJOW/SJOO/SJOOW | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Other, Commercial & Industrial | |
| Conductor Material | Copper | Jacket | Rubber |
Product Description
Application:
Used for power installation, household appliances, and machines rated voltage A.C. 300V or below, such as small - sized motor and outdoor power supply.
Structure:
Conductor: Stranded Bare Copper
Installation: EPDM
Jacket: CPE
Technical Data
Rated Temperature: 60℃, 75℃, 90℃, 105℃
Rate Voltage: 300V
Feature:
Outdoor Usage: SJOW, SJOOW
Oil Resistance: SJO, SJOO, SJOW, SJOOW.
Flame Resistance: Pass the FT2 test.
Colour:
4 Cores: Black, White, Green, Red
Dimensions and Specifications:
AWG Size/ No. of Cores | Diameter (mm) | Conductor D.C. resistance at 20℃ | |
SJ/SJO/SJOW | SJOO/SJOOW | ||
18AWG/2C | 7.6±0.2 | 7.24±0.5 | 22.4 |
16AWG/2C | 8.2±0.2 | 7.87±0.5 | 14.1 |
14AWG/2C | 8.9±0.2 | 6.84±0.5 | 8.88 |
12AWG/2C | 10.7±0.20 | 10.41±0.50 | 5.58 |
10AWG/2C | 14.2±0.30 | 14.22±0.70 | 3.51 |
18AWG/3C | 8.0±0.20 | 7.75±0. 50 | 22.4 |
16AWG/3C | 8.7±0.20 | 8.38±0.50 | 14.1 |
14AWG/3C | 9.6±0.20 | 9.40±0.50 | 8.88 |
12AWG/3C | 11.2±0.25 | 10.92±0.50 | 5.58 |
10AWG/3C | 14.9±0.30 | 14.73±0.70 | 3.51 |
18AWG/4C | 8.8±0.20 | 8.38±0.50 | 22.4 |
16AWG/4C | 9.5±0.20 | 9.27±0.50 | 14.1 |
14AWG/4C | 10.5±0.20 | 10.41±0.50 | 8.88 |
12AWG/4C | 12.3±0.25 | 12.07±0.70 | 5.58 |
10AWG/4C | 16.4±0.30 | 16.64±0.70 | 3.51 |
18AWG/5C | 9.6±0.20 | / | 22.4 |
16AWG/5C | 10.4±0.20 | / | 14.1 |
14AWG/5C | 11.4±0.25 | / | 8.88 |
12AWG/5C | 13.4±0.30 | / | 5.58 |
10AWG/5C | 18.0±0.30 | / | 3.51 |
