LTEDFA-1550 1550nm Erbium-Doped Fiber Amplifier
- Shanghai
- T/T
You May Like
-
LTEDFA-1550 Original JDSU Laser 1550nm Fiber EDFA
-
EDFA LTEDFA-1550 1550nm CATV Fiber Amplifier EDFA
-
2U 1550nm Optical Fiber Amplifier EDFA With High Output Power
-
2U 1550nm Optical Fiber Amplifier EDFA With High Output Power
-
2U 1550nm Optical Fiber Amplifier EDFA With High Output Power(26-37dBm)
-
TON6800Q 4 Outputs AGC Telecom Equipment Optical Node
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Lootom | |
| Model Number | LTEDFA-1550 |
Product Description
Specifications
Original JDSU laser1U 19" housing
LCD display,1-4 way output
Single or dual power supplys option
Reserve remote control
Features
- This machine adopts imported optical module, pump laser and erbium doped amplifier
- The perfect and stable circuit of optic power output and controlling circuit of thermoelectric refrigeration device of laser module assure the user the best quality and stable working for a long time.
- The internal micro-processor software has many functions such as laser monitoring, number display and trouble alarm and on-line management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
- The RS-232 standard connector makes it is possible to manage on line and monitor in another place.
- The machine adopts 19standard shelf and it can work with the voltage from 85V to 254v or -48V DC.

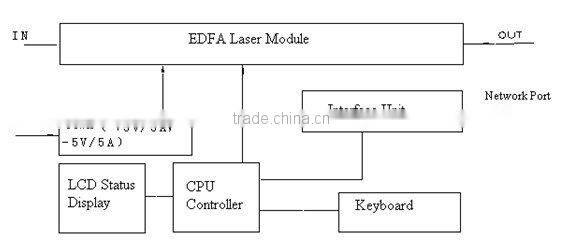

Diagram
Main Technical Parameter:
Item | Unit | Specification | Remark | |
Optical Wavelength | nm | 1535~ 1565 |
| |
Input optical power range | dBm | -3~ +10 |
| |
Output optical power range | dBm | 10~ 24 |
| |
Noise | dB | ≤5.0 | Input optic power is 0dBm | |
Return loss | Input return loss | dB | ≥45 |
|
Output return loss | dB | ≥45 |
| |
Pump leakage power | Inlet pump leakage power | dBm | ≤-30 |
|
Outlet pump leakage power | dBm | ≤-30 |
| |
C/N | dB | ≥51 | Connect to Lootom optical transmitter and receiver,get the link index | |
C/CTB | dB | ≥63 | ||
C/CSO | dB | ≥63 | ||
Operating Temperature | ° C | -5~ +55 |
| |
Operating Humidity (max) |
| 95% |
| |
Storage Temperature Range | ° C | -30~ +70 |
| |
Storage Humidity(max) |
| 95% |
| |
