TON6800A Optical Node

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Lootom
Model Number	TON6800A

4-way high level outputs,104dBuV each output port
bi-directional transportation
GaAs module
Return laser:FP,DFB,CWDM avail

Features

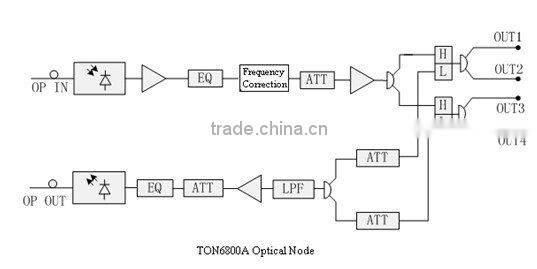

Diagram

Specifications

Optical Node Performance Parameter

Class	Item		Unit	Forward Channel	Reverse Channel(conventional type)
Optical	Operating Wavelength		nm	1200~1600	1310+20
	Optical Input Power Range		dBm	-6.0~+2.0
	Optical Output Power		dBm		≥0dBm
	Optical Return Loss		dB	≥40
	Reverse Laser Type				DFB/FP optional
	Optical Connector Type			FC/APC or SC/APC
RF	Frequency Range		MHz	87(54)~860	5~65(42)
	Each RF Output Level		dBuV	≥104(4 ports)
	Flatness		dB	±0.75
	RF output ports			1~4 ports optional
	Nominal RF Input/Output Impedance		Ω	75
	RF Input/Output Port Return Loss		dB	≥16	≥16
	Link Index	C/N	dB	≥51.0
		CTB	dBc	≥65.0
		CSO	dBc	≥61.0
		NPR Dynamic Range	dB		20@NPR≥30dB
General	Dimension		mm	490×280×190
	Voltage		V	AC 220V 50Hz or AC 60V 50Hz
	Operating Temperature		°C	-25~+85
	Power Consumption		VA	≤25

Burst Reverse Optical Transmitter Module (Burst Type)
