Home > Products > Electrical actuators > 4 -wire Electric Thermal Actuator
4 -wire Electric Thermal Actuator
Negotiable
/ Piece
1000 Pieces(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Model Number | DR-10 |
Product Description
Specifications
use for radiator or floor heating system to control the temperatureApplications:

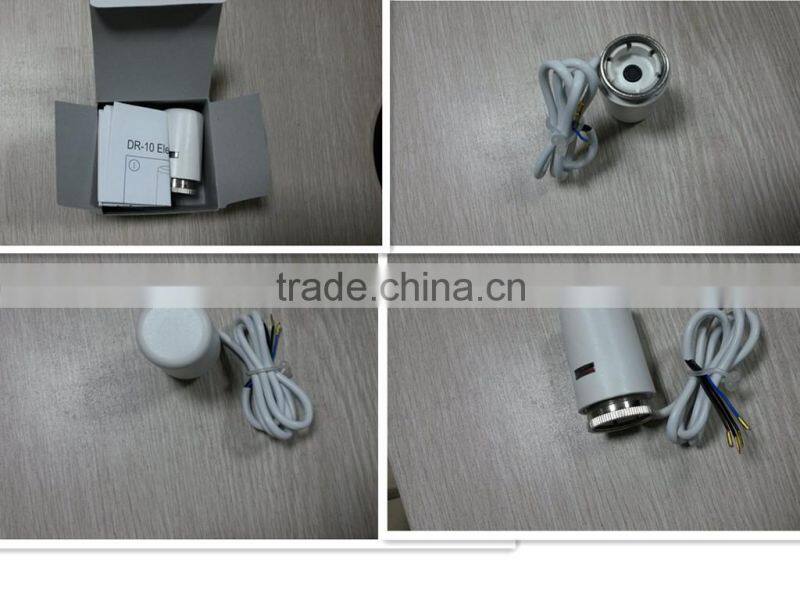

Actuators Use for radiator ,floor heating system to control the temperature . The product shown is nornally open. with Vernet sensor inside . Voltage can be 24V or 220V .
Technical data :
| Model | DR-10 |
| Color | white |

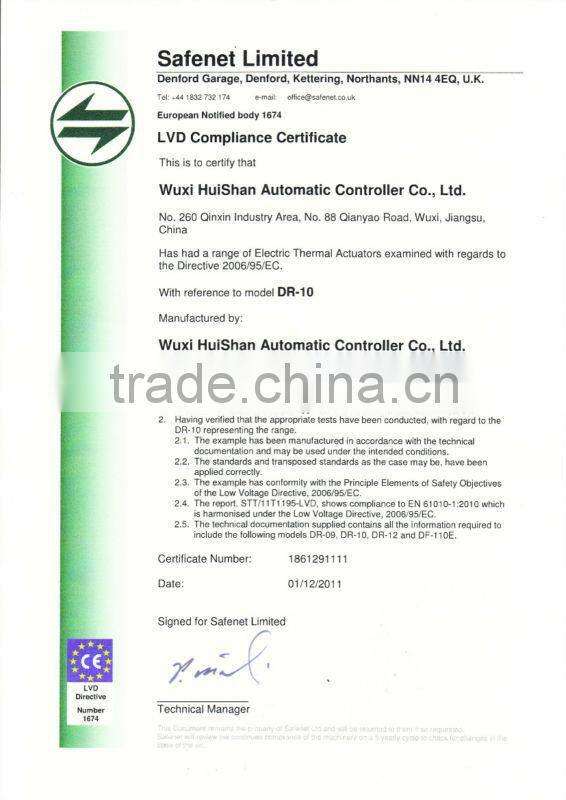

| Certification | CE |
| U | 24V/230AC |
| T | less than 4.5 min |
| H | 3.0 mm |
| F | 90-125 N |
| P | 2.5W/ 3W |
| I max. | 150mA /250 mA |
| Connection | M30x1.5 |
| Remarks | 4-wire , switch quantity feedback |
Packing :
50 pcs /CTN , G.W.: 8.3 KG , Carton size :45X25X19.5 cm
