Clear Boxes Sheet Pvc Sheet Cutting Machine

FOB Price

US$ 1 - 2 / Set

1 Set(Min. Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Plasma Cutting Machine
Application	Plastic PVC PET PP PS	Place of Origin	Guangdong, China
Brand Name	TODEN	Model Number	A-8503
Rated Power	10KW	No-Load Rotational Speed	30 M/minutes
Saw Blade Diameter	Max 500 mm	Max. Cutting Depth	0.08-0.6 mm
Dimensions	850 mm	Voltage	380v 3Phases
Power(W)	10KW	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

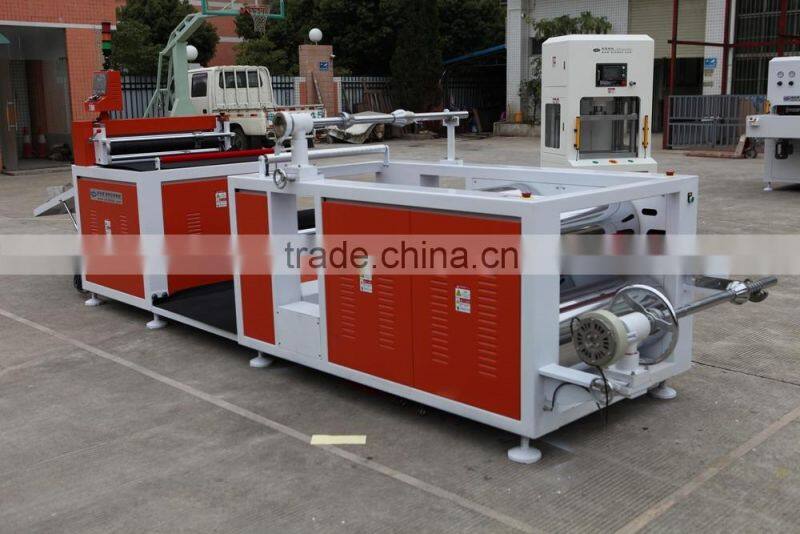

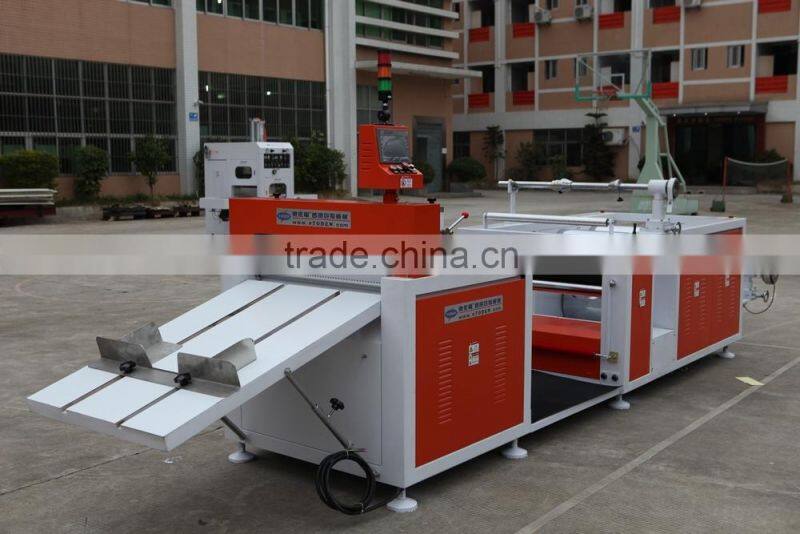

clear boxes sheet pvc sheet cutting machine

Machine Parameter :

Machine medel	A-8503
Suitable material	PVC APET PETG PP
Machine power	18KVA
Machine Voltage	380V 3 Phases 5 Line
Material Thickness	0.08-0.6 mm
Cutting Length	10-800 mm
Cutting Precision	≤± 0.25 mm
Raw Material Diameter	Φ 500 mm
Machine Speed	30 m/minutes
air compressor need	0.6mpa 350L/min
Machine size	47001800*1500mm
Machine weight	1800KG

Product Description

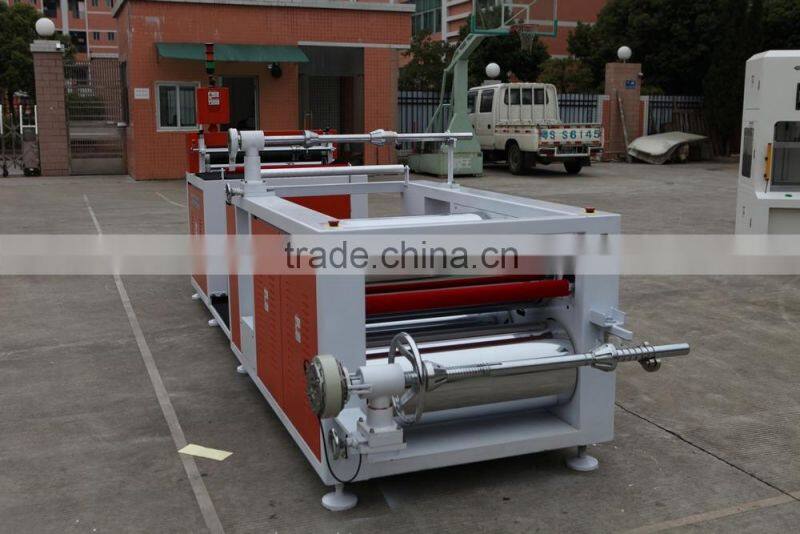

Part 1----Flatten Function

Machine with 3 cylinder ,And Heating by Electric and oil .One roll transparent material loaded ,Machine control by micro-computer. Raw roll material Diameter Can be 500 mm ,the effective width can be 800 mm. machine with putting protection film function upon the machine.

Part 2----Cutting Function

In this part ,machine cutting the length and width ,all can be set in PLC ,just putting number is ok . before and after the cuter both have static dealing .

This machine is heating and flatting the plastic sheet controlled by computer, it adopts the system of the hot oil to flat the sheet. It flats the material firstly,then cut. It can keep the formed product smooth and glossy. All of the system adopts the numerical control and matc for the PLC screen, You can set accurate sheet's cutting speed, length, and quality. In this way, it can save a lot of manpower, improve the production capability.

Contact Us

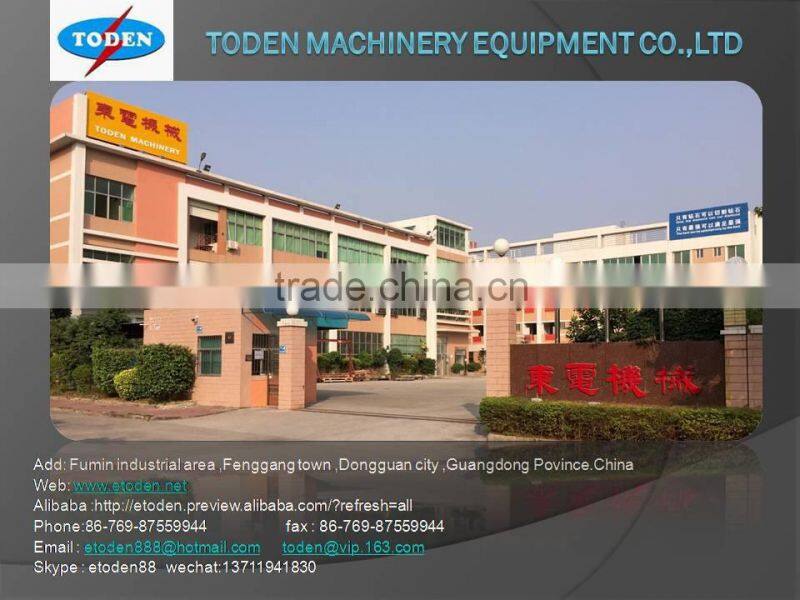

Dongguan Toden Machinery Equipment Co., Ltd.: Contact nameAdam Dang
