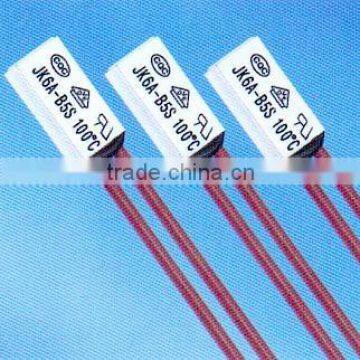

JK6A-BS Series Plastic Type Thermal Protector

Specifications

JK6A-BS Series Plastic TypeThermal Protector

-Outer Size

Model JK6A-B4S:15*7.4*3.8mm

Model JK6A-B5S:18*7.8*3.8mm

Model JK6A-B6S:20*8.1*4.0mm

-Using Range

JK6A-B4S,B5S,B6S series thermal protector is widely used in electric motor,household appliance & other electric equipment. The JK6A-B4S,B5S,B6S series can effectively and reliably guard against the damage caused by overflow and overheat.It is used for over current protect and temperature controlling about home appliance, electric equipments,lamps,battery,vacuum cleanout machine,PC plate,and transformer etc.

-Structure And Protector Theory

JK6A-B4S,B5S,B6S series thermal protector is composed by heat conductive iron shell,bimetal component welded silver alloy contact,current condcutive frame,holder,insulated fixing seat,static contact pad and heat resistant wire etc.When the temperature of being protector equipment rises to specified temperature value,the bimetal component will work and release the contact to shut off the circuit,and by contrast, if the device cools down to the safe temperature, the contact point will reset automatically.

-Contact Capacity: 24VDC 12A, 125VAC 12A, 250VAC 8A

-Temperature Range: 50C-150C+/-5C

 Instruction: Reseting temperature is 2/3 of standard opening temperature or specified by customers. It's tolerance is +/-15C.
