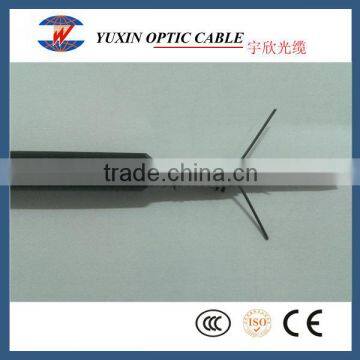

4/6/8/12/24 Core Outdoor GYXTW53 Double Jacket Fiber Optic Cable From China Factory

FOB Price

US$ 0.36 - 0.4 / Kilometer

10 Kilometers(Min. Order)

Port Ningbo Or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	GYXTW
Model Number	Optic Fiber Cable		Type	Cat 1

Product Description

4/6/8/12/24 Core Outdoor GYXTW53 Double Jacket Fiber Optic Cable From China Factory

Introduction:

The fibers,125μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound.The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the loose tube waterblocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a polyethylene (PE) sheath,the GYXTW53 will have double Sheath.

Main Technical Parameters:

Fiber Parameters:

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

Cable Parameters:

Items		Specifications
Fiber Count		4/6/8/12
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,etc
Loose Tube	Dimension	2.3mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	1.0mm
Strength Member	Material	Steel
PSP	Diameter	4.1 mm±0.1mm
PSP	Thickness	0.45mm
Outer Jacket	Dimension	10.8mm±0.2mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	1000
Tension(Short Term)	N	3000
Crush(Long Term)	N/10cm	1000
Crush(Short Term)	N/10cm	3000
Min. Bend Radius(Dynamic)	mm	25D
Min. Bend Radius(Static)	mm	12.5D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70

Pictures:

If you have any interest about our products,please be free to contact with me anytime.

Contact with me:

Skype:mickeyma90

Phone:+8618758357139
