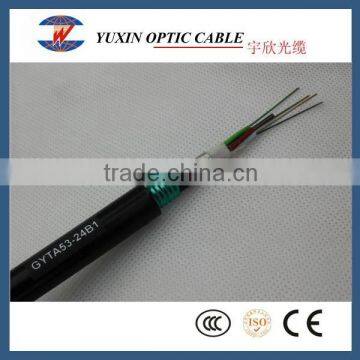

4/8/12/24/48 Core SM GYTY53/GYTA53 Outdoor Underground Fiber Optic Cable From Zhejiang Manufacturer

FOB Price

USD $0.7 - $1 / Kilometer

4 Kilometers(Min.Order)

Port Ningbo Or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	YUXIN
Model Number	GYTA53		Type	Cat 1

Product Description

4/8/12/24/48 Core SM GYTY53/GYTA53 Outdoor Underground Fiber Optic Cable From Zhejiang Manufacturer

Introduction:

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic locates in the center of core as a non-metallic strength member. The tubes are stranded around the strength member into a compact and circular core.After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

Profile Views:

Fiber Parameters:

No.	Items			Unit	Specification
					G.652D
1	Cladding Diameter			μm	125±0.7
2	Core-cladding concentricity			μm	≤0.5
3	Cladding non-circularity			%	≤0.7
4	Coating Diameter			μm	245±5
5	Cladding -coating concentricity			μm	<12.0
6	Mode field Diameter	1310nm		μm	9.2±0.4
		1550nm		μm	10.4±0.5
7	Fiber Cutoff Wavelength			nm	λcc≤1260
8	Attenuation (max.)		1310nm	dB/km	≤0.4
			1550nm		≤0.3

Cable Parameters:

Items		Specifications
Fiber Count		24
Loose Tube	Dimension	2.10mm±0.05mm
	Material	PBT
	Color	Red, Green
Central Strength Member		Steel Wire
Inner jacket	Dimension	8.5mm±0.1mm
	Material	PE
	Thickness	≥1.0mm
	Color	Black
Outer jacket	Dimension	12.5mm±0.5mm
	Material	HDPE
	Thickness	≥1.5mm
	Color	Black

Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	800
Tension(Short Term)	N	2700
Crush(Long Term)	N/10cm	1500
Crush(Short Term)	N/10cm	3000
Min. Bend Radius(Dynamic)	mm	25D
Min. Bend Radius(Static)	mm	12.5D
Installation temperature	℃	-5~+50
Operate temperature	℃	-30~+70
Storage of Temperature	℃	-30~+70

Packing Information:

If you have any interest about our products,please be free to contact with me anytime.

Name:mickeyma

Skype:mickeyma90

Phone:+8618758357139
