4 Core Outdoor GYXTW Optic Fiber Cable From China Manufacturer

FOB Price

USD $0.2 - $0.6 / Kilometer

10 Kilometers(Min.Order)

Port Ningbo Or Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	GYXTW
Model Number	Optic Fiber Cable	Type	Cat 1
Number of Conductors	4

Product Description

4 Core Outdoor GYXTW Optic Fiber Cable From China Manufacturer

Introduction:

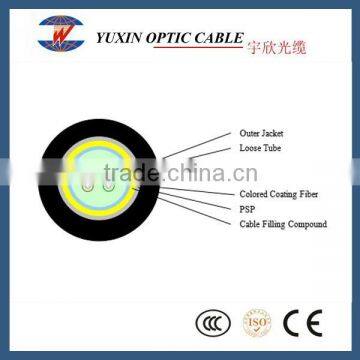

The fibers,125μm,are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a waterresistant filling compound.The tube is wrapped with a layer of PSP longitudinally.Between the PSP and the loose tube waterblocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a polyethylene (PE) sheath.

Main Technical Parameters:

Fiber Parameters:

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
9	Attenuation(max.)	1550nm	dB/km	≤0.3

Cable Parameters:

Items		Specifications
Fiber Count		4
Colored Coating Fiber	Dimension	250µm±15µm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,
Loose Tube	Dimension	2.3mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	1.0mm
Strength Member	Material	Steel
PSP	Diameter	4.1 mm±0.1mm
PSP	Thickness	0.45mm
Outer Jacket	Dimension	8.0mm±0.2mm
	Material	PE
	Color	Black

Mechanical and Environmental Characteristics:

Items	Unite	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min. Bend Radius(Static)	mm	10D
Installation Temperature	℃	-20~+60
Operating Temperature	℃	-40~+70
Storage Temperature	℃	-40~+70

Pictures:

If you have any interest about our products,please be free to contact with me anytime.

Contact with me:

Skype:mickeyma90

Phone:+8618758357139
