Modern Creative Hot -rolled Emt Galvanised Steel Tubes

FOB Price

US$ 700 - 800 / Ton

20 Tons(Min. Order)

Port XINGANG CHINA
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	1.07, 2.11	Section Shape	Round
Outer Diameter	0.5 - 4 inch	Place of Origin	Hebei, China
Secondary Or Not	Non-secondary	Application	Other, Pipe used for threading
Technique	Hot Rolled	Certification	UL
Surface Treatment	Galvanized	Special Pipe	EMT Pipe
Alloy Or Not	Non-alloy

Product Description

Modern creative hot -rolled emt galvanised steel tubes

Details for hot -rolled emt galvanised steel tubes

(1)UL Approved
(2)UL797-2000
(3)Galvanized inside and outside
(4)High corrosion resistance

EMT electrical steel pipe

1) Standard: UL 797
2) Trade Size Designator: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2", 3", 4".
3) All sizes are furnished in the length of 10" or according to your requirement.

The EMT pipe is formed with advanced technology and equipment. It's excellent ductility
provides easy bending,cutting and joining.
Both inside and outside surface of the conduit is galvanized.So it features high corrosion resistance and is widely used under poor condition.

Specification for hot -rolled emt galvanised steel tubes

Name	EMT pipe (ELECTRICAL METALLIC CONDUIT STEEL PIPE)
Standard	UL797 & ANSI C80.3, UL 797,BS 4568 ,BS EN39 ,BS 31
Name	IMC (INTERMEDIATE METAL CONDUIT STEEL PIPE)
Standard	Standard: UL1242/ANSI C80.6. BS 4568 ,BS EN39 ,BS 31 Thread: NPT
Size	1/2" to 4"
Length	3050mm (10 feet)or according to customer's requirement
Usage	Through the electrical wires with the purpose of protection for the electrical raceway system
Surface finished	Hot dip galvanized(HDG) for class4 and pre-galvanized (PG) for classs3
Material	Carbon steel coil
Package	The conduits coverd with plastics then tied with steel straps
Delivery time	20 to 30 days after we receive your advance payment or copy of L/C
Payment Term	L/C at sight or T/T
Wall thickness	Standard or economy
Package	Small package, 5 to 20 PCS/bundle, tied with wire. Master package, 5 to 20 PCS/small bundle, tied with wires, then 10 small bundles/master, tied with steel straps.each bundle covered with woven bag.

Dimension for hot -rolled emt galvanised steel tubes

Nominal Dimension(mm)		Outside Diameter Inch(mm)		Wall Thickness Inch(mm)		Length	Estimated Weight
Inch	mm	Dimension	Tolerance	Dimension	Tolerance	(mm)	(Kg/m)
1/2"	16	0.706(17.93)	±0.005(0.13)	0.042(1.07)	5%10%	10(3.05)	0.439
3/4"	21	0.922(23.42)		0.049(1.24)			0.669
1	27	1.163(29.54)		0.057(1.45)			0.99
1-1-4"	35	1.510(38.35)		0.065(1.65)			1.469
1-1-2"	41	1.710(44.20)		0.065(1.65)			1.698
2	53	2.197(55.80)		0.065(1.65)			2.17
2-1-2"	63	2.875(73.03)	±0.010(0.25)	0.072(1.83)			3.177
3	78	3.500(88.90)	±0.015(0.38)	0.072(1.83)			3.979
4	103	4.500(114.30)	±0.020(0.50)	0.083(2.11)			5.75

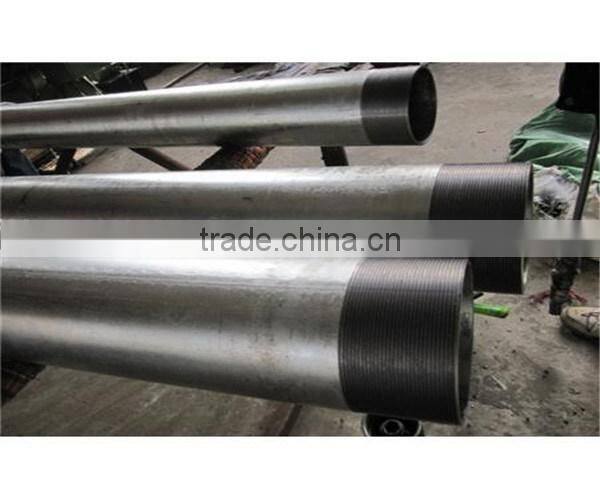

Picture for hot -rolled emt galvanised steel tubes

Workflow

Packaging&shipping for hot -rolled emt galvanised steel tubes

Customer visiting

Our team

hot -rolled emt galvanised steel tubes
