Best Quality Most Popular 12mm Emt Conduit Pipe/tube
- XINGANG CHINA
- T/T
You May Like
Product Details
| Thickness | 1.07, 2.11 | Section Shape | Round | |
| Outer Diameter | 0.5 - 4 inch | Place of Origin | Hebei, China | |
| Secondary Or Not | Non-secondary | Application | Other, Pipe used for threading | |
| Technique | Hot Rolled | Certification | UL | |
| Surface Treatment | Galvanized | Special Pipe | EMT Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
12mm emt conduit pipe/tubeOD:1/2"-4"
WT:standurd or economy
PACKING:IN BUNDLES
Best quality most popular 12mm emt conduit pipe/tube
Details for 12mm emt conduit pipe/tube
(1)UL Approved
(2)UL797-2000
(3)Galvanized inside and outside
(4)High corrosion resistance
EMT electrical steel pipe
1) Standard: UL 797
2) Trade Size Designator: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2", 3", 4".
3) All sizes are furnished in the length of 10" or according to your requirement.
The EMT pipe is formed with advanced technology and equipment. It's excellent ductility
provides easy bending,cutting and joining.
Both inside and outside surface of the conduit is galvanized.So it features high corrosion resistance and is widely used under poor condition.
Specification for 12mm emt conduit pipe/tube
| Name | EMT pipe (ELECTRICAL METALLIC CONDUIT STEEL PIPE) |
| Standard | UL797 & ANSI C80.3, UL 797,BS 4568 ,BS EN39 ,BS 31 |
| Name | IMC (INTERMEDIATE METAL CONDUIT STEEL PIPE) |
| Standard | Standard: UL1242/ANSI C80.6. BS 4568 ,BS EN39 ,BS 31 Thread: NPT |
| Size | 1/2" to 4" |
| Length | 3050mm (10 feet)or according to customer's requirement |
| Usage | Through the electrical wires with the purpose of protection for the electrical raceway system |
| Surface finished | Hot dip galvanized(HDG) for class4 and pre-galvanized (PG) for classs3 |
| Material | Carbon steel coil |
| Package | The conduits coverd with plastics then tied with steel straps |
| Delivery time | 20 to 30 days after we receive your advance payment or copy of L/C |
| Payment Term | L/C at sight or T/T |
| Wall thickness | Standard or economy |
| Package | Small package, 5 to 20 PCS/bundle, tied with wire. Master package, 5 to 20 PCS/small bundle, tied with wires, then 10 small bundles/master, tied with steel straps.each bundle covered with woven bag. |
Dimension for 12mm emt conduit pipe/tube
| Nominal Dimension(mm) | Outside Diameter Inch(mm) | Wall Thickness Inch(mm) | Length | Estimated Weight | |||
| Inch | mm | Dimension | Tolerance | Dimension | Tolerance | (mm) | (Kg/m) |
| 1/2" | 16 | 0.706(17.93) | ±0.005(0.13) | 0.042(1.07) | 5%10% | 10(3.05) | 0.439 |
| 3/4" | 21 | 0.922(23.42) | 0.049(1.24) | 0.669 | |||
| 1 | 27 | 1.163(29.54) | 0.057(1.45) | 0.99 | |||
| 1-1-4" | 35 | 1.510(38.35) | 0.065(1.65) | 1.469 | |||
| 1-1-2" | 41 | 1.710(44.20) | 0.065(1.65) | 1.698 | |||
| 2 | 53 | 2.197(55.80) | 0.065(1.65) | 2.17 | |||
| 2-1-2" | 63 | 2.875(73.03) | ±0.010(0.25) | 0.072(1.83) | 3.177 | ||
| 3 | 78 | 3.500(88.90) | ±0.015(0.38) | 0.072(1.83) | 3.979 | ||
| 4 | 103 | 4.500(114.30) | ±0.020(0.50) | 0.083(2.11) | 5.75 |

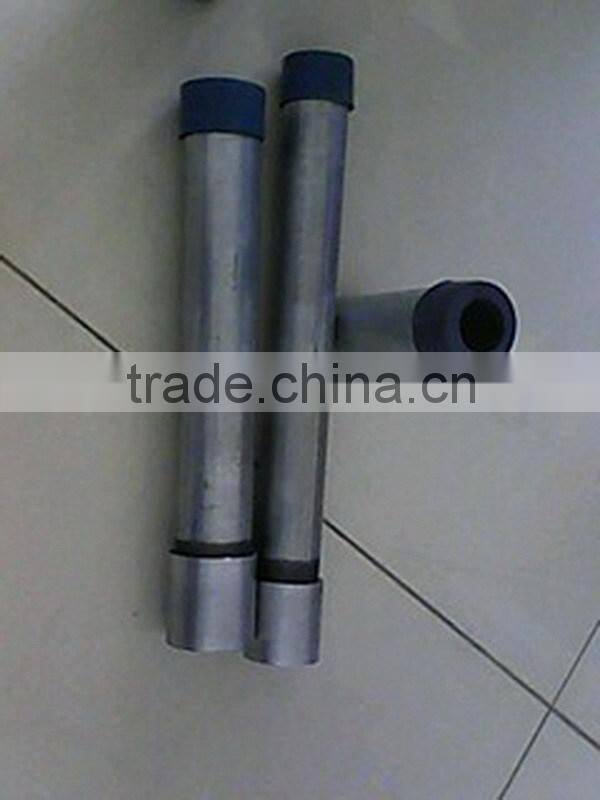

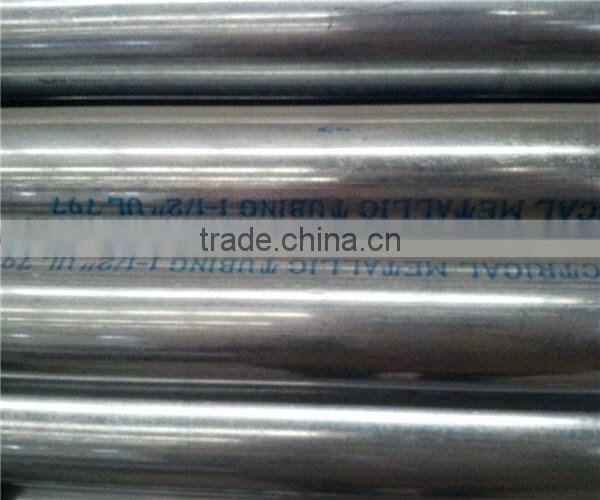

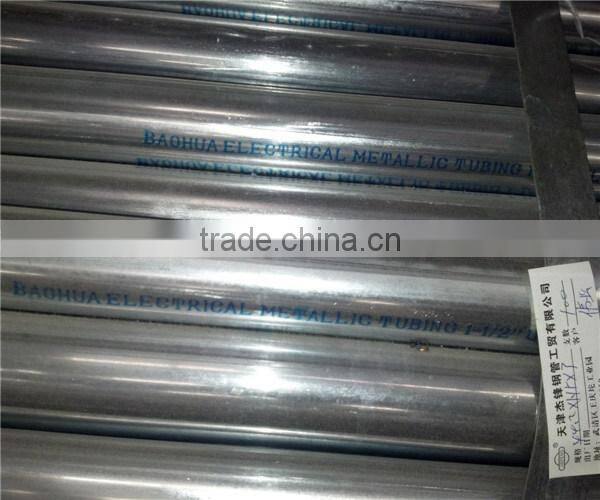

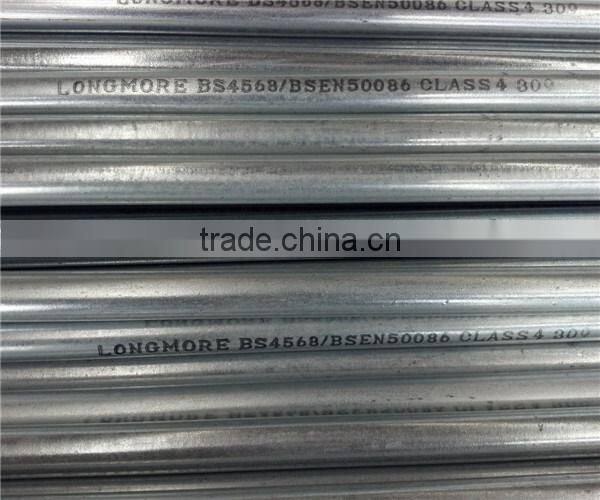

Picture for 12mm emt conduit pipe/tube
Workflow
Packaging&shipping for 12mm emt conduit pipe/tube
Customer visiting
Our team
12mm emt conduit pipe/tube
