Innovative Discount Hot Rolled gi Emt Galvanised Steel Pipe
- XINGANG CHINA
- T/T
You May Like
Product Details
| Thickness | 1.07, 2.11 | Section Shape | Round | |
| Outer Diameter | 0.5 - 4 inch | Place of Origin | Hebei, China | |
| Secondary Or Not | Non-secondary | Application | Other, Pipe used for threading | |
| Technique | Hot Rolled | Certification | UL | |
| Surface Treatment | Galvanized | Special Pipe | EMT Pipe | |
| Alloy Or Not | Non-alloy |
Product Description
Specifications
hot rolled gi emt galvanised steel pipeOD:1/2"-4"
WT:standurd or economy
PACKING:IN BUNDLES
Innovative discount hot rolled gi emt galvanised steel pipe
Details for hot rolled gi emt galvanised steel pipe
(1)UL Approved
(2)UL797-2000
(3)Galvanized inside and outside
(4)High corrosion resistance
EMT electrical steel pipe
1) Standard: UL 797
2) Trade Size Designator: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2", 3", 4".
3) All sizes are furnished in the length of 10" or according to your requirement.
The EMT pipe is formed with advanced technology and equipment. It's excellent ductility
provides easy bending,cutting and joining.
Both inside and outside surface of the conduit is galvanized.So it features high corrosion resistance and is widely used under poor condition.
Specification for hot rolled gi emt galvanised steel pipe
| Name | EMT pipe (ELECTRICAL METALLIC CONDUIT STEEL PIPE) |
| Standard | UL797 & ANSI C80.3, UL 797,BS 4568 ,BS EN39 ,BS 31 |
| Name | IMC (INTERMEDIATE METAL CONDUIT STEEL PIPE) |
| Standard | Standard: UL1242/ANSI C80.6. BS 4568 ,BS EN39 ,BS 31 Thread: NPT |
| Size | 1/2" to 4" |
| Length | 3050mm (10 feet)or according to customer's requirement |
| Usage | Through the electrical wires with the purpose of protection for the electrical raceway system |
| Surface finished | Hot dip galvanized(HDG) for class4 and pre-galvanized (PG) for classs3 |
| Material | Carbon steel coil |
| Package | The conduits coverd with plastics then tied with steel straps |
| Delivery time | 20 to 30 days after we receive your advance payment or copy of L/C |
| Payment Term | L/C at sight or T/T |
| Wall thickness | Standard or economy |
| Package | Small package, 5 to 20 PCS/bundle, tied with wire. Master package, 5 to 20 PCS/small bundle, tied with wires, then 10 small bundles/master, tied with steel straps.each bundle covered with woven bag. |
Dimension for hot rolled gi emt galvanised steel pipe
| Nominal Dimension(mm) | Outside Diameter Inch(mm) | Wall Thickness Inch(mm) | Length | Estimated Weight | |||
| Inch | mm | Dimension | Tolerance | Dimension | Tolerance | (mm) | (Kg/m) |
| 1/2" | 16 | 0.706(17.93) | ±0.005(0.13) | 0.042(1.07) | 5%10% | 10(3.05) | 0.439 |
| 3/4" | 21 | 0.922(23.42) | 0.049(1.24) | 0.669 | |||
| 1 | 27 | 1.163(29.54) | 0.057(1.45) | 0.99 | |||
| 1-1-4" | 35 | 1.510(38.35) | 0.065(1.65) | 1.469 | |||
| 1-1-2" | 41 | 1.710(44.20) | 0.065(1.65) | 1.698 | |||
| 2 | 53 | 2.197(55.80) | 0.065(1.65) | 2.17 | |||
| 2-1-2" | 63 | 2.875(73.03) | ±0.010(0.25) | 0.072(1.83) | 3.177 | ||
| 3 | 78 | 3.500(88.90) | ±0.015(0.38) | 0.072(1.83) | 3.979 | ||
| 4 | 103 | 4.500(114.30) | ±0.020(0.50) | 0.083(2.11) | 5.75 |

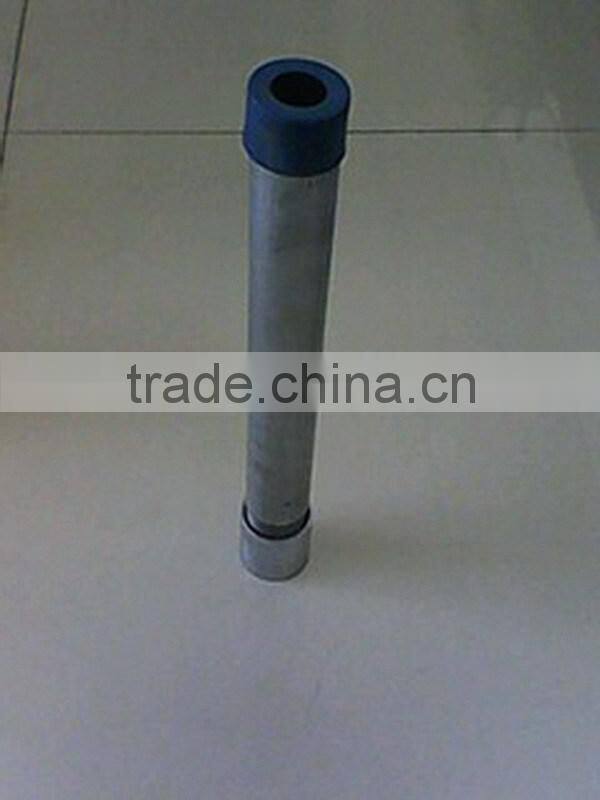

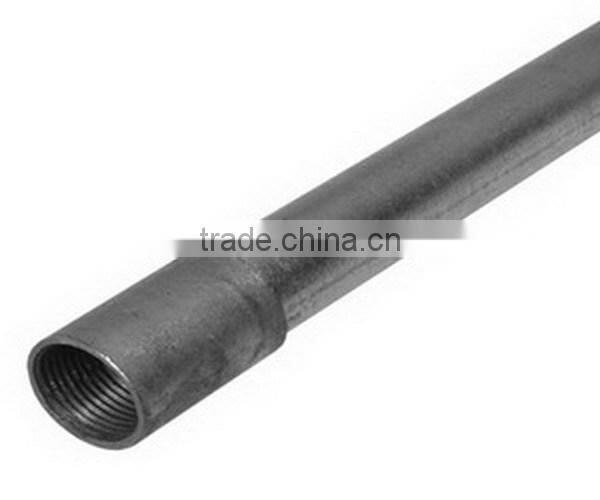

Picture for hot rolled gi emt galvanised steel pipe
Workflow
Packaging&shipping for hot rolled gi emt galvanised steel pipe
Customer visiting
Our team
hot rolled gi emt galvanised steel pipe
