STA Silicon Nitride (Si3N4) Bonded Silicon Carbide (SiC) Protection Tube And Pipe for ceramics
- Any China port
- T/T L/C D/P D/A Credit Card
You May Like
-
STA Ceramic Si4N3 Silicon Nitride Bonded SiC Silicon Carbide Tubes For High Refractoriness Applications
-
STA thermocouple tube, nitride bonded silicon carbide tubes
-
STA Reaction Bonded/Nitride Bonded Silicon Carbide Temperature Sensor Protection Tube SiC Ceramic Tubes
-
STA Hot selling for high purity silicon nitride Si3N4 Thermocouple Protection tube
-
STA CE approved refractory Nitride bonded Silicon carbide Sic thermocouple protection tube
-
STA 2016 hot sale Silicon Nitride bonded Silicon Carbide tube
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Other, Silicon Carbide (SiC), Si3N4 | SiO2 Content (%) | 22 | |
| MgO Content (%) | 0.8-1.2 | |||
| SiC Content (%) | 78 | |||
| Model Number | Customer's Requirement | Brand Name | STA |
Product Description

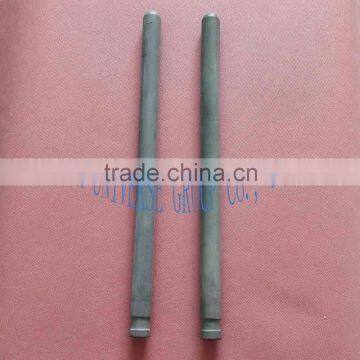

Silicon Nitride (Si3N4) Bonded Silicon Carbide (SiC) Protection Tube And Pipe for ceramics
Silicon Carbide tube is highly wear resistant and also has good mechanical properties,
including high temperature strength and thermal shock resistance.
silicon carbide tube,as a technical ceramic, is produced in reaction bonded. Silicon carbide tube
is made by infiltrating compacts made of mixtures of silicon carbide and Carbon with liquid Silicon.
The Silicon reacts with the Carbon forming silicon carbide. The reaction product bonds the
silicon carbide particles
Specifications
1. Silicon Nitride bonded Silicon Carbide tube
2. Diameter 12-60mm,
3.bonded Silicon Carbide tube
4.Thermo shock
5.Sic tube
Silicon nitride Tube Specifications
1. High quality Silicon NSiC Thermocouple Tubes.
2. Diameter 12-60mm, length 300-2000mm
3.Good Thermo Shock Resistance.
We can supply high quality Silicon Nitride Bonded Silicon Carbide Thermocouple Tubes.
Silicon nitride Tube General Introduction:
Silicon nitride is good material for thermocouple protection tubes
due to its toughness at high temperatures, superior thermal shock resistance,
light weight and corrosion resistance.
Technical Data:
| Max.Hot face Temperature | 1750℃ |
| Cold Modulus of Rupture | 47MPa-79MPa |
| 1400 C Modulus of Rupture | 54MPa-88.4MPa |
| Thermal Expansion | 4.7/ C×10-6 (20 C-1400 C |
| Porosity | 15%-11.6% |
| Thermal Conductivity | 16.3W/m.K |
