STA High Quality Silicon Nitride Tube
- ANY PORT IN CHINA
- T/T Credit Card
You May Like
-
High Quality Silicon Nitride Tube
-
Si3N4 Silicon Nitride Thermocouple Protection Tube
-
STA Thermocouple Silicon Nitride Si3n4 Protection Tube
-
Silicon Carbide Bonded Silicon Nitride Tube Sic Protection Tube for Alumina Liquior
-
High Dielectric Strength,high Purity Silicon Nitride Protection Tube
-
ZhengZhou STA Silicon Carbide Sic Protection Tube & Sheath ,pipe
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Other | SiO2 Content (%) | 0.12% | |
| Al2O3 Content (%) | 0.06% | MgO Content (%) | 0.2% | |
| CaO Content (%) | 0.8% | |||
| CrO Content (%) | 0.93% | SiC Content (%) | 1.2% | |
| Model Number | STAP10 | Brand Name | STA |
Product Description

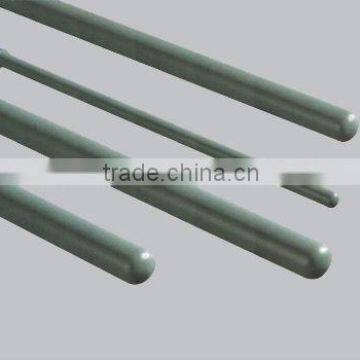

STA High quality Silicon nitride tube
Good Si3N4 Silicon nitride Tube and Sheath is a advanced ceramics, have long working life, more than 12 month.
Si3N4 Silicon nitride tubes sheaths
Silicon nitride possess a unique combination of physical properties, such as high strength, toughness, excellent thermal shock resistance and resistance to corrosion, which make it the perfect material in this application.
Silicon nitride Thermocouple protection tubes sheaths are state of the art in temperature measuring system for aluminum melt .Melt must be processed, in order to have the desired properties for casting.Therefore it must be kept in the right temperature
Silicon nitride thermocouple protection sheaths tubes are an advanced ceramic tube offering outstanding performance for temperature control in aluminium foundries and smelters and are extremely cost effective compared to other materials, such as cast iron, silicon carbide and alumina.
Characteristics Silicon nitride thermocouple protection sheaths tubes:
non-wetting property
Low coefficient of thermal expansion
Excellent thermal shock resistance
Ability to withstand high structural loads to high temperature
Applications Silicon nitride Thermocouple protection tubes sheaths:
Advanced ceramic thermocouple protection sheaths or tubes for use in the molten aluminium and non-ferrous industry..
Property | SSN GPS-SSN HPSN RBSN |
Density (g.cm-3) | 3.28 3.30 3.23 2.5 |
Young’s Modulus (GPa) | 285 320 315 189 |
Bend Strength (MPa) | 675 750 850 440 |
Fracture Toughness K1c (MPa.m0.5) | 6 7 8 2.5 |
Hardness (GPa) | 16 16 16 7.2 |
Thermal Expansion Coefficient (x 10-6/°C) | 3.2 3.2 3.2 3.2 |
Thermal Conductivity (W/m.K) | 25 30 30 14 |
Maximum Temperature (°C) for applicationDielectric ConstantAbrasive Wear resistance Parameter | 1150 1150 1150 11009 9 9 7.51110 1130 1120 360 |
Silicon nitride Thermocouple protection tubes sheaths are used extensively for continuous temperature measurement in nonferrous metals
