STA thermocouple Silicon nitride Si3n4 protection tube
- Qingdao/Shanghai
- Credit Card
You May Like
-
silicon carbide bonded silicon nitride tube sic protection tube for alumina liquior
-
High Dielectric Strength,high purity Silicon nitride protection tube
-
ZhengZhou STA silicon carbide sic protection tube & sheath ,pipe
-
silicon carbide sic protection tube & sheath ,pipe
-
STA peofessional manufacture recrystallized silicon carbide sic protection tube & sheath
-
STA high temp with lower price recrystallized silicon carbide sic protection tube & sheath
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Silicon Carbide (SiC) | SiO2 Content (%) | 0.2% | |
| Al2O3 Content (%) | 0.36% | MgO Content (%) | 0.18% | |
| CaO Content (%) | 0.66% | |||
| CrO Content (%) | 0.086 | SiC Content (%) | 30% | |
| Model Number | SCN---001 | Brand Name | ENT |
Product Description
STA thermocouple Silicon nitride Si3n4 protection tube
Silicon nitride (Si3N4) bonded silicon carbide (SiC) material is produced by adding industrial silicon paste into artificial aggregate. Under high temperature, Si and N2 reacts with the formula of 2N2+3Si=Si3N4, Si3N4 bonded Sic material is formed by bonding SiC particles tightly
Si3N4 bonded SiC material is an excellent refractory with the original properties of SiC. The material has quite high strength even under the temperature of 1700.C has properties of creep deformation resistance and anti-chemical erosion, and has excellent thermal conductivity and wear-resistance.
Technical Parameter of thermocouple protection tube:
item | unit | data |
temperature of application | C | 1380 |
density | g/cm3 | >=3.02 |
open porosity | % | <0.1 |
bending strength | Mpa | 250(20C) |
| Mpa | 280(1200C) |
modulus of elasticity | Gpa | 330(20C) |
| Gpa | 300(1200C) |
thermal conductivity | W/m.k | 45(1200C) |
coefficient of thermal expansion | K-1*10-6 | 4.5 |
rigidity |
| 13 |
acid-proof alkaline |
| Excellent |

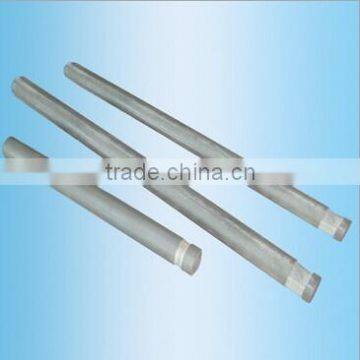

Pictures of thermocouple protection tube:
