Home > Products > Refractory Nitride bonded Silicon Carbide > Silicon Nitride Ceramic Thermocouple Protection Tube
Silicon Nitride Ceramic Thermocouple Protection Tube
- SHANGHAI
- T/T L/C D/P D/A
You May Like
-
STA Si3N4 Ceramic Silicon Nitride Protection Tube
-
Silicon Nitride SI3N4 Thermocouple Protection Tube
-
STA ISO Approved Silicon Carbide Protection Pipe
-
CE Approved Refractory Nitride Bonded Silicon Carbide Sic Thermocouple Protection Tube
-
STA SiC Pipe Silicon Carbide Thermocouple Protection Tube
-
CE Approved Silicon Nitride Tube Si3N4 Bonded SiC Thermocouple Protection Pipe
Product Details
| Place of Origin | Henan, China | Shape | Pipe | |
| Material | Other, Silicon Carbide (SiC), silicon nitride ceramic | |||
| Model Number | SN04 | Brand Name | STA |
Product Description
Silicon Nitride Ceramic Thermocouple Protection Tube
1. Excellent oxidation resistance
2. Good wear resistance
3. Excellent corrosion resistance
4. High temperature flexural performance
5. Excellent load bearing strength
The specification of thermocouple protection tube:
Density | 2.8 g/cm3 |
Porosity | ≤16% |
Phase composition | β-Si3N4, Oxide |
SiC | 72% |
Si3N4 | 21% |
compressive strength | 140MPa |
flexure strength | 35MPa |
Thermal conductivity | 16 w/m*k |
Application of thermocouple protection tube: silicon nitride bonded silicon carbide protection tubes
Si3N4 tube is made from composite material with combination of Si3N4 and SiC.

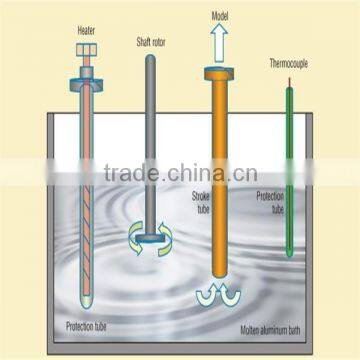

It is special used as rise tube in non-ferrous metal industry, thermocouple protective tube, electric heating element protective tube, gas protective tube in carbon fiber industry.
It is characterized by good ability in resisting corrosion, resisting thermal shock,resisting oxidizability,resisting high temperature liquid scour.
Size of Thermocouple Protection Tube is available.
| Outer diameter | Inner diameter | Length |
| 13 | 10 | 500-1000 |
| 16 | 8-10 | 300-1000 |
| 20 | 12 | 300-1200 |
| 25 | 14-15 | 1500 |
| 28 | 16-20 | 300-1200 |
| 30 | 10-20 | 1500 |
| 35 | 25 | 300-1250 |
| 40 | 25-28 | 300-12000 |
| 50 | 25 | 300-1200 |
| Remarks:the protection tubes can be customized | ||

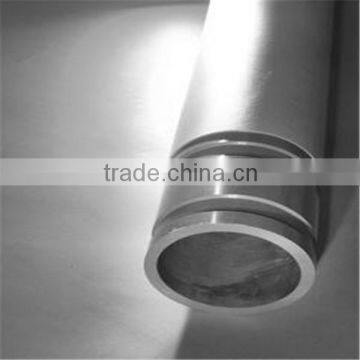

Photo show of thermocouple protection tube:
1
Packing: standard export packing: wooden box with foamed plastic inside.
Shipping term: DHL/FEDEX/TNT/UPS
Packaging:
STA UNIVERSE GROUP CO.,LTD is a profession manufactory in China for years. We specialize in muffle furance, ceramic fiber products, refractory and related goods. High quality products with competitive price are popular to customer. With good after-sales service, our company have a highest reputation at overseas.
Founded is 2001, The universe group is dedicating to innovation and creating a world brand from now on. Original a small collective plant on the verge of workshop, it has now grown into an international group which has more than 72,00 employees around the globe and realizes a turnover of 2.7 billion yuan in 2010.
Our Service
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
7. Check quality of items one by one
8. Provide packing photos and tracking number
9. tracking parcel for you.
Contact informaton: Please scan QR code as follows,
1.Do you have MOQ of goods?
We accept the trial order, so you can test quality firstly.
2.Can you offer best price for us to beat competitors?
Of course, we can update price to support your business.
3.How long will it take to complete my order?
For the stock items, we can arrange the shippment within 2 days after paymment is received. For the customized items,lead time is about 25 days.
4.What's your after-sales service?
Furances is 2 years warranty, other products is 3 months.
5. Can you send goods to our shipping agent in China?
YES, We can. And delivery time is within 3 days.
6. I will go to China for Shanghai international exhibition of refractories and industrial ceramics, And can we visit your factory?
We are so happy to get your visit.
