Box Type Air Cooled Water Chiller, Industrial Chillers, Air Cooled Chiller
- Qingdao
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Chiller | |
| Place of Origin | Shandong, China | Brand Name | LYTTE OR OEM | |
| Model Number | LTLSQ | Operating Voltage | 380/400 VAC | |
| Mounting | Floor Standing | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
pletely automatic control2. easy expanding capacity from 3ton to 50ton
3.easy operation and install
4.CE, CRAA
Quality Box Type Air Cooled Water Chiller, Industrial Chillers, Air Cooled Chiller
Two Models:
1. Air Cooled Box Type Water Chillers(8.3KW-120W)
Colling Condition: Chilled water in/out 12/7°C; cooling water in/out 30/35°C;
Suitable chilled water temperature:9-25°C;
MODEL | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
Cooling Capacity | KW | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 |
103kcal/hr | 7.1 | 11.8 | 19 | 25.4 | 29.2 | 37.9 | 50.7 | 58.5 | 75.9 | 103.2 | |
2.Air Cooled Low Temperature(-5C) Box Type Water Chillers
Designed Condition: Chilled Glycol in/out -1/-5°C; ambient 35°C;
This series units used in low temperature conditions, 25% ethylene glycol to be used as a refrigerant;
MODEL | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
Cooling | KW | 4.7 | 7.5 | 13.7 | 16 | 18 | 22.7 | 32 | 36 | 45.4 | 61.6 |
103kcal/hr | 4 | 6.5 | 11.8 | 13.8 | 15.5 | 19.5 | 27.5 | 31 | 39 | 53 | |

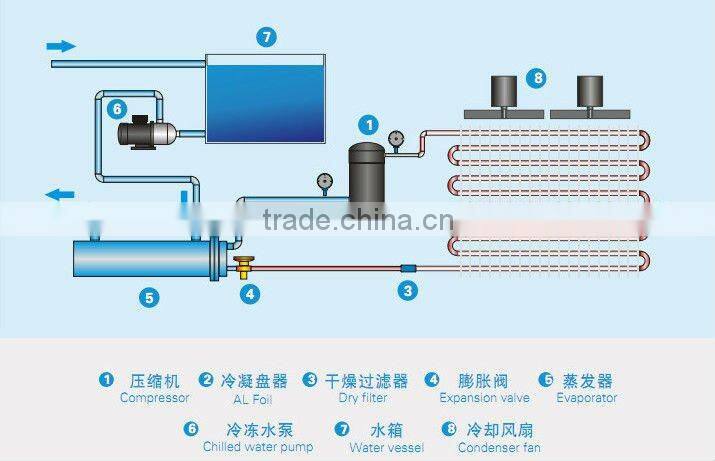

The system Diagram

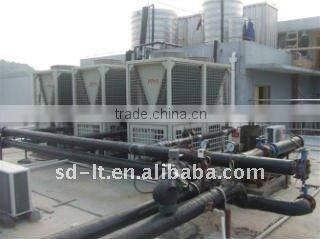

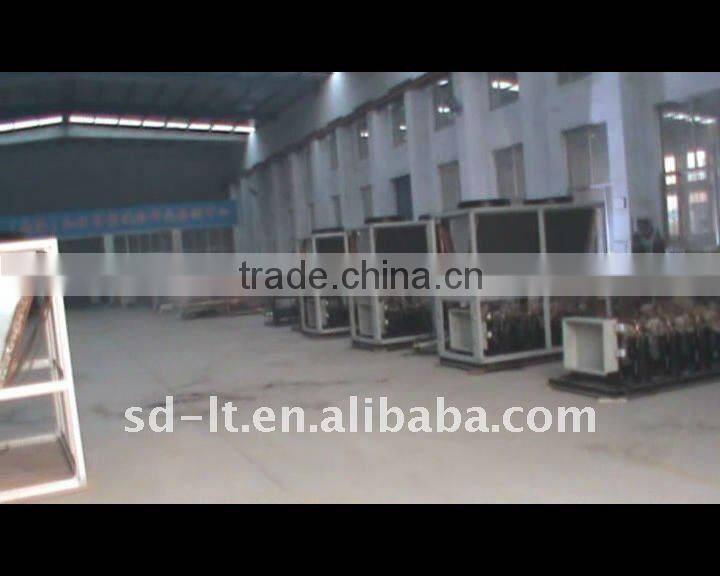

Photoes of Air Cooled Water Chillers
