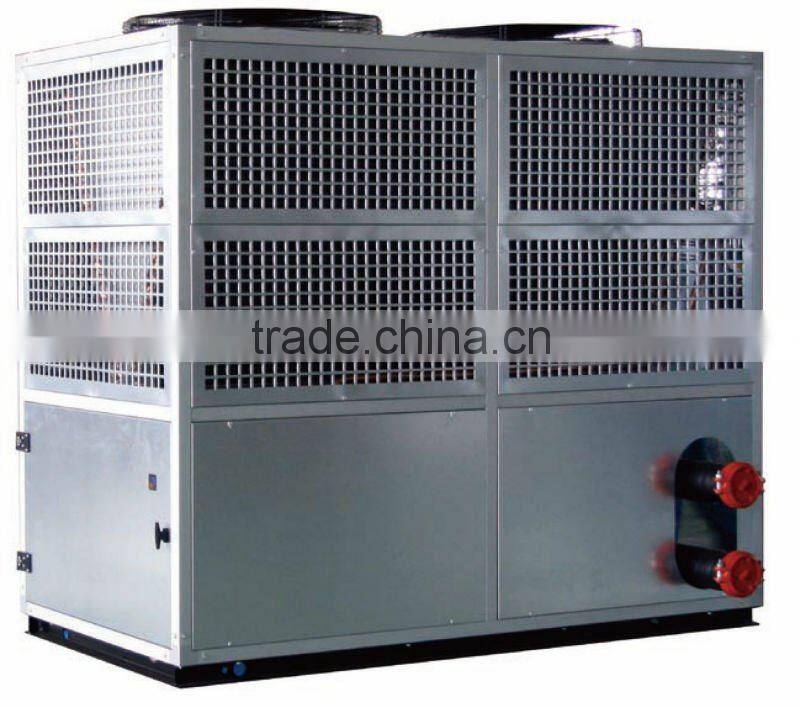

High Quality High Efficiency and Environmental Box Type Protection Air Cooled Water Chiller

Specifications

Air Cooled Box Type Chillers(8.3KW-120W)

Two Kinds of Models:Air Cooled Water Chiller/Air to Water Chiller
1. Cooling Condition: Chilled Water In/Out 12°C/7°C;Ambient 35°C
Models: LTWF03AS-40AD
Cooling Capacity: 8KW-120KW
2.Cooling Condition: Chilled Glycol in/out -1/-5°C; Ambient 35°C
Models: LTWF03ASL-40ADL
Cooling Capacity: 4.7KW-61.6KW

TWO MODELS:

Model A.

Design Features:

1.Colling Condition: Chilled water in/out 12/7°C; ambient 35°C;

2.Suitable chilled water temperature:9-25°C;

3.Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;

4.Referigerant:  R22, contact us if that for R134a,R407c and other refrigerant need;

5. There may be Changes for improvement without notice, confirm always before your order.

Model B. Design Features:

Design Features:

1.Designed Condition: Chilled Glycol in/out -1/5°C; ambient 35°C;

2. This series units used in low temperature conditions, 25% ethylene glycol to be used as a refrigerant;

3. Power supply: 3P-380V-50HZ;with voltage allowance ±10%,voltage dif between the phase lines±2%;

4.Referigerant:  R22, contact us if that for R134a,R407c and other refrigerant need;

5. There may be Changes for improvement without notice, confirm always before your order.

INTRODUCTION

A. With scroll, or recipocating compressor of high quality, high efficient heat exchangers, excellent system design, by excllent
process, the chillers is of suffient capacity and efficiency.
B. The chillers will work stably for long time period as they are produced by excllent process, composed of reliable control
components and professional control procedure.
C. Complete safety protection:
1.High&low pressure protection, pressure safety value protection;
2.Overload protection to the compressor;
3.Power supply protect for phase lack, counter phase, voltage too high and voltage deficient;
4.Water system protection for freezing breaking, water lack etc.

FEATURE
1.  Ready to work only after connected to chilled water system;
2. A stainless steel water vessel,a low noise pump have been fixed inside the chiller;
3. The chillers of capacity below 50KW is movable by wheels with them;
4. The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble.
5. Strict test and inspection has been made before the chillers are delivered.

 RUNNING DIAGRAM:

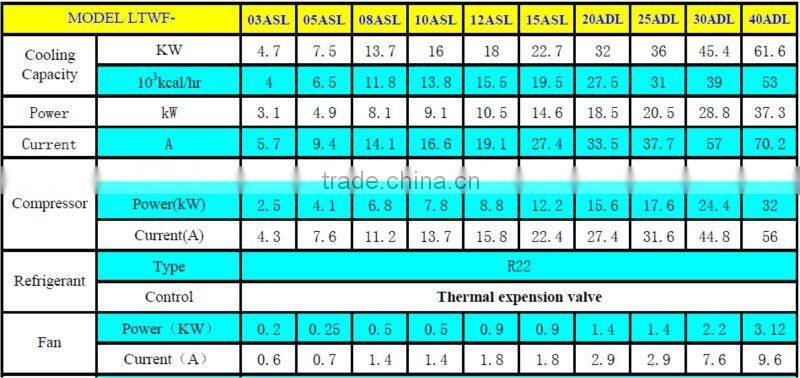

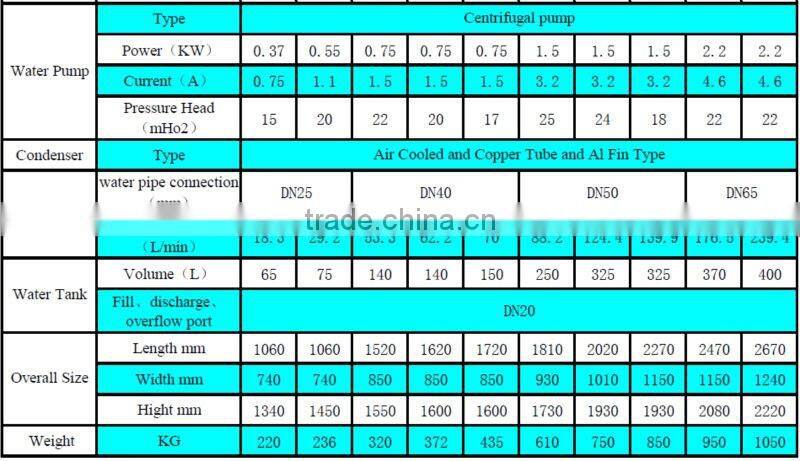

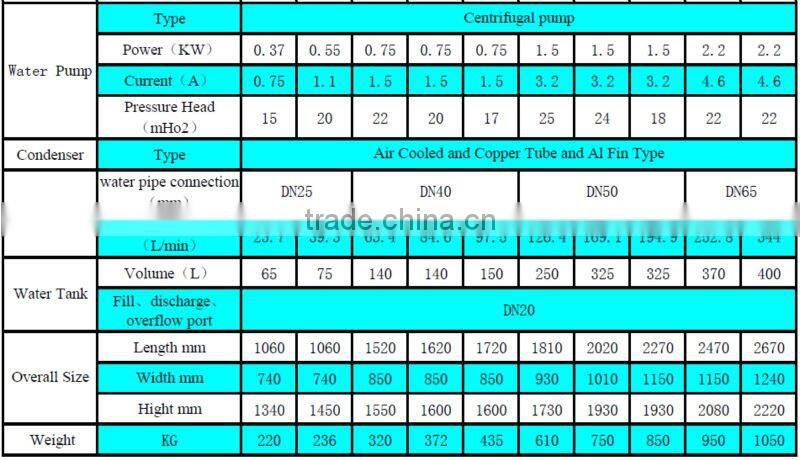

Specification

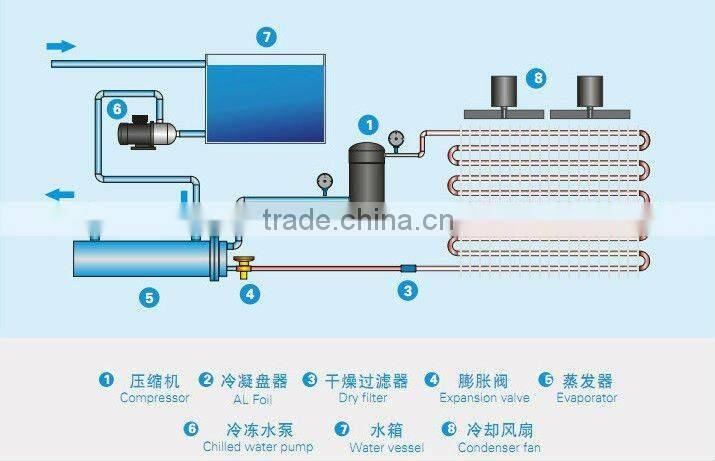

System Diagram

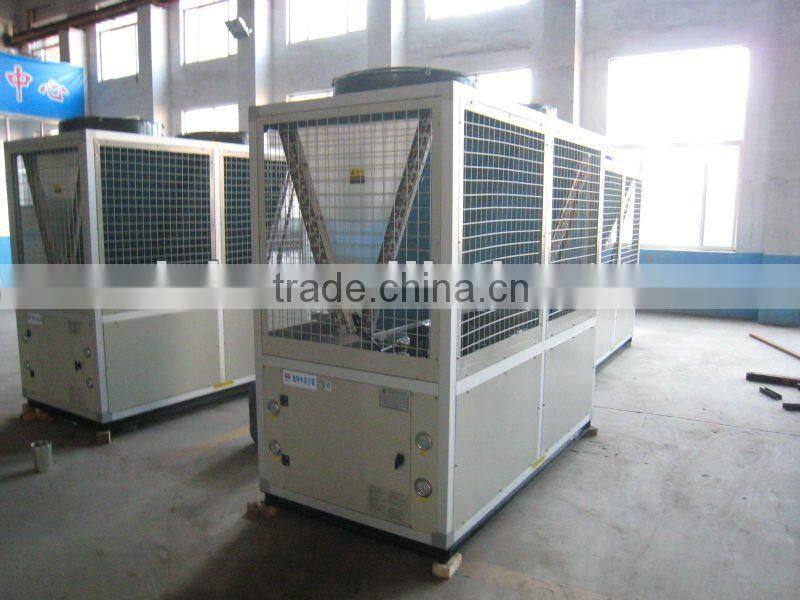

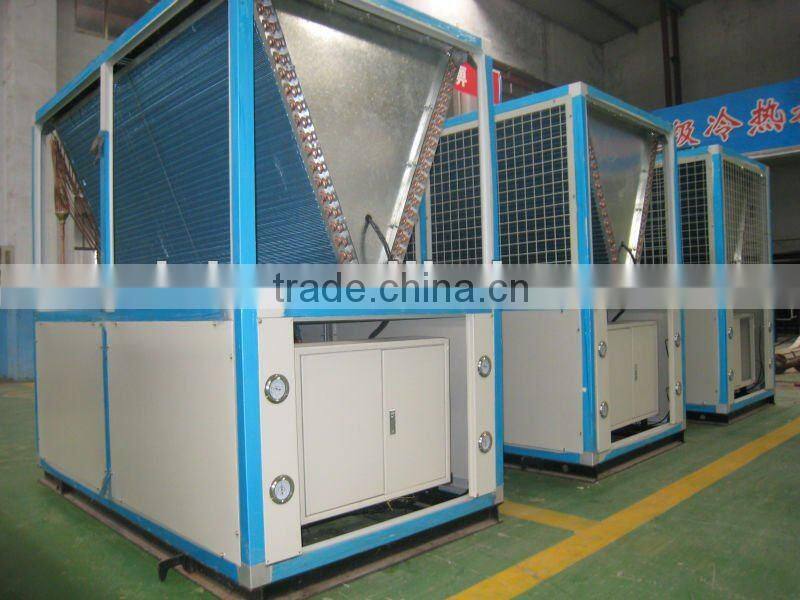

Products in the Factory
