Home > Products > Air Cooled Chiller > Air Cooled Water Chiller with high efficiency and quality

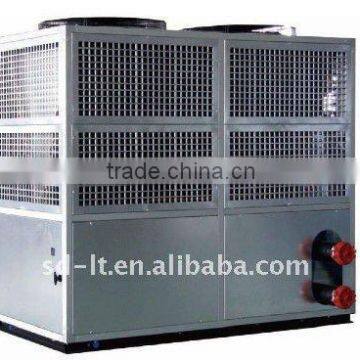

Air Cooled Water Chiller with high efficiency and quality
USD $1,598 - $58,999
/ Set
1 Set(Min.Order)
- 600 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Series Air Cooled Chillers with Efficiency and High Quality
-
Central Air Conditioner CE Approval R407C Air Cooled Industrial Water Chiller with High Efficiency and Top Quality
-
Screw Compressor Air Cooled Water Chiller With High Efficiency and Top Quality
-
High Quality High Efficiency and Environmental Box Type Protection Air Cooled Water Chiller
-
Most Energy Saving Air Cooled Water Chiller, 87-1000kw; CE Certificate
-
8kw-120kw,Durable Energy Saving and Environmental friendly Scroll Compressor Air Cooled Chiller for Air Conditioning
Product Details
| Condition | New | Type | Other, Air Cooled Chiller | |
| Place of Origin | Shandong, China | Brand Name | LYTTE, LYTTE or OEM Series | |
| Model Number | LTWF | Operating Voltage | 380/400 VAC | |
| Mounting | Floor Standing | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Air Cooled Water Chiller-Low noise water pump
-Energy saving fan
-CE certificate
-Strict test before delivery
Detailed Product Description
Air Cooled Water Chiller
-Low noise water pump
-Energy saving fan
-CE certificate
-Strict test before delivery
Quality Modular LTWF Air Cooled Scroll Compressor Water Chiller
1.System Features:
1)Ready to work only after connected to chilled water system
2)stainless steel water vessel, a low noise pump have been fixed inside the chiller
3)With energy saving fan of large air flow and low noise
4)The chillers of capacity over 50KW are double refrigeration system design that is good to reduce the frequent start and stop for load change. The chillers can run even 1 system is in trouble
5) Strict test and inspection has been made before the chillers are delivered
Colling Condition: Chilled water in/out 12/7C; cooling water in/out 30/35C;Suitable chilled water temperature:9-25C;
Technical Data Sheet:
| MODEL LTWF- | 03AS | 05AS | 08AS | 10AS | 12AS | 15AS | 20AD | 25AD | 30AD | 40AD | |
| Cooling Capacity | KW | 8.3 | 13.7 | 22.1 | 29.5 | 34 | 44.1 | 59 | 68 | 88.2 | 120 |
| 103kcal/hr | 7.1 | 11.8 | 19 | 25.4 | 29.2 | 37.9 | 50.7 | 58.5 | 75.9 | 103.2 | |
| Power(kW) | 3.1 | 5 | 7.4 | 9.7 | 11.9 | 15.3 | 19.4 | 23.7 | 30.6 | 40.5 | |
| Current(A) | 5.7 | 9.7 | 14.3 | 18.2 | 22.1 | 28.8 | 36.3 | 44.1 | 57.6 | 64.2 | |
| Compressor | Quty(PCS) | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Power(kW) | 2.55 | 3.96 | 6.11 | 8.06 | 9.9 | 12.39 | 16.1 | 19.8 | 24.8 | 34.1 | |
| Current(A) | 4.39 | 7.69 | 11.41 | 14.86 | 18.25 | 22.7 | 29.7 | 36.5 | 45.4 | 49.6 | |
| Refrigerant | Type | R22 | |||||||||
| Control | Thermal expension valve | ||||||||||
| Fan | Power(KW) | 0.2 | 0.45 | 0.5 | 0.9 | 1.2 | 1.4 | 1.7 | 2.2 | 3.12 | 4.2 |
| Current(A) | 0.6 | 0.9 | 1.4 | 1.8 | 2.3 | 2.9 | 5.4 | 7.6 | 9.6 | 10 | |
| Type | Centrifugal pump | ||||||||||
| Power(KW) | 0.37 | 0.55 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | |
| Current(A) | 0.75 | 1.1 | 1.5 | 1.5 | 1.5 | 3.2 | 3.2 | 3.2 | 4.6 | 4.6 | |
| Pressure Head | 15 | 20 | 22 | 20 | 17 | 25 | 24 | 18 | 22 | 22 | |
| Condenser | Type | Copper tupe and al fin | |||||||||
| Evaporator | water pipe connection | DN25 | DN40 | DN50 | DN65 | ||||||
| Water flow(L/min) | 23.7 | 39.3 | 63.4 | 84.6 | 97.5 | 126.4 | 169.1 | 194.9 | 252.8 | 344 | |
