Telecom underground cable
- 5000 Kilometer / Kilometers per Month
- Fob Shanghai
- T/T D/P D/A
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | Dongsheng | |
Model Number | PCM CABLE | Type | Cat 5e | |
Number of Conductors | 8 |
Product Description
Specifications
telecommunication cablelid BC conductor.
2.PE insulation .
3.PET tape and AL foil shield on each pair.
Telecom underground cable
lid BC conductor.
2.PE insulation .
3.PET tape and AL foil shield on each pair.
4.PVC jacket .
More related products: cable, cables, communication cable, jumper wire, network cable, lan cable, data cable ,data transmission cable, Hookup wire , jumper wire, PCM cable, E1 cable, screen cable, shield cable, twist pair cable,
telecommunication cable .
Specification:
1)8P x 24/26AWG PCM cable
8x{1Px0.5mm TC Conductor+1.2mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped}+Polyester Wrapped+Rip Cord+10.0mm PVC Jacket
2)16P x 24/26AWG PCM cable
16Px0.5mm TC Conductor+0.98mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+11.0mm PVC Jacket
3)32P x 24/26AWG PCM cable
4x{8Px0.5mm TC Conductor+0.98mm Solid PE Insulation}+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+14.0mm PVC Jacket
Parameters | Minimum Requirement |
1. Conductor |
|
- Material | tinned copper |
- Diameter (mm) | 0.50 ± .005 |
|
|
2 Insulation |
|
- Material | polyethylene |
|
|
2.1 Twisting | twisted |
|
|
2.2 Color | White-brown |
|
|
3. Jacket |
|
- Material | Polyvinyl chloride |
- Outside diameter (mm) | 2.70 nom |
4. Shielding | Polyester-aluminized foil with 0.50 mm tin plated drain wire |
5. ELECTRICAL TEST |
|
5.1 DC Resistance @ 20° C (W/km) | < 94
|
5.2 Mutual capacitance @ 20° C (nF/km) | < 100 |
5.3 Insulation resistance (GW/km) | >500 |
5.4 Dielectric strength (Vdc) | >1500 |
5.5 Characteristic Impedance (W) |
|
at 1 MHz | 120 ± 12 |
5.6 Attenuation (dB/km @ 1 MHz) | < 65
|

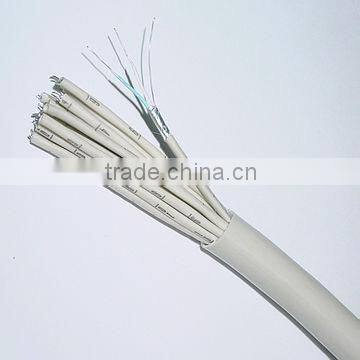

Product Photos:
6.Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
7.Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
8.Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
9.More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements with top quality,advanced technology,perfect management and excellent service
Our motto is“Keeping pace with the time,and going up like the sun”,just as our company`s name suggests:“Dongsheng”.
We are looking forward to establishing long term&mutual benifit business relationship with you.
