120 ohm Telecom Cable 32 Pair PCM Cable

120 ohm Telecom Cable 32 Pair PCM Cable

120 ohm Telecom Cable 32 Pair PCM Cable

Telecom PCM Cable 8 Pairs  , Telecommunicaion Cable PCM 16P ,PCM 32P

lid BC conductor. 2.PE insulation . 3.PET tape and AL foil shield on each pair. 4.PVC jacket .

More related products: cable, cables, communication cable, jumper wire, network cable, lan cable, data cable ,data transmission cable, Hookup wire , jumper wire, PCM cable, E1 cable, screen cable, shield cable, twist pair cable,

telecommunication cable .

Specification:

1)8P x 24/26AWG PCM cable

8x{1Px0.5mm TC Conductor+1.2mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped}+Polyester Wrapped+Rip Cord+10.0mm PVC Jacket

2)16P x 24/26AWG PCM cable

16Px0.5mm TC Conductor+0.98mm Solid PE Insulation+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+11.0mm PVC Jacket

3)32P x 24/26AWG PCM cable

4x{8Px0.5mm TC Conductor+0.98mm Solid PE Insulation}+Polyester Tap Wrapped+0.5mm TC Drain Wire+Al Foil Wrapped+Rip Cord+14.0mm PVC Jacket

Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required

Packing:

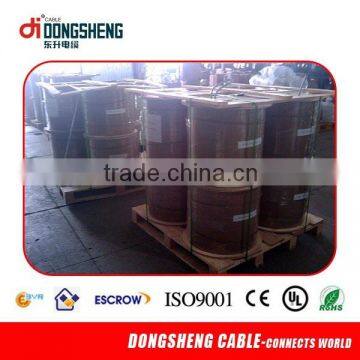

1) Packing Lengths:100/roll,200m/roll,300m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’request

 Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

Factory and Production line

Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer,

also show our company and products to the future new customers.
