European quality Mini Coaxial Cables /Micro Coaxial Cable/Miniature Coax Cable

Specifications

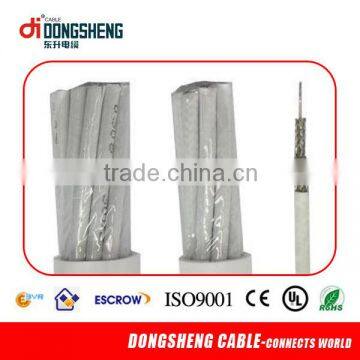

 European quality Micro Coaxial Cable

Micro Coaxial Cable

Product Specification:

Telecom Coax Cable  BT Series The British Telecom types BT3002 suitable for the interconnection of telecommunication transmission equipment. They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system.They also available in both single and multi-core versions, in standard PVC and LSOH versions.

Type Imp.Ohms Inner Conductor(mm) Dielectric (mm) Shield Outer Sheath O/D mm BT2001    75 7/0.2 BC FPE  TC PVC 4.40 BT2002    75 7/0.2 BC FPE  2×TC PVC/LSZH 5.10 BT2003    75 1/0.61 BC PE  2×TC PVC/LSZH 6.70 BT3002    75 1/0.31 BC PE  2×TC PVC/LSZH 3.55 BT3002*8 Core    75 1/0.31 BC PE  2×TC PVC/LSZH 16.0 BT3002*16 Core    75 1/0.31 BC PE  2×TC PVC/LSZH 21.0

RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable » Mini RG59(1855A)                                                     Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television). • Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB.  • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green

Type Imp.Ohms Inner              Conductor(mm) Dielectric             (mm) Shield Outer Sheath O/D mm MiniRG59 75 1/0.58  BC 2.60   FPE Boneded AL/P+95%TC PVC 4.10 MiniRG59×3 75 1/0.58  BC 2.60   FPE Boneded AL/P+95%TC PVC 11.20 MiniRG59×4 75 1/0.58  BC 2.60   FPE Boneded AL/P+95%TC PVC 12.22 MiniRG59×5 75    1/0.5   BC 2.60   FPE Boneded AL/P+95%TC PVC 13.80 MiniRG59×8 75 1/0.58   BC 2.60   FPE Boneded AL/P+95%TC PVC 16.20 MiniRG59×10 75 1/0.58   BC 2.60   FPE Boneded AL/P+95%TC PVC 20.22 MiniRG59×12 75 1/0.58  BC 2.60   FPE Boneded AL/P+95%TC PVC 20.96 MiniRG59×16 75 1/0.58  BC 2.60   FPE Boneded AL/P+95%TC PVC 23.27

Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable

for satellite systems where lower attenuation required

Packing:

1) Packing Lengths:100/roll,200m/roll,250m/roll,300m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’request

Product pacakge:

Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

Factory and Production line

We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.

Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.

As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59, RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor, Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters, including standard workshops and warehouse,to ensure your goods in goods production condition.

Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL  certificate,which is Promise high quality cable .

Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and  gain good reputation.We will meet client requirements
