European quality Coaxial Cable 16 Core BT3002

FOB Price

USD $0.01 - $10,000 / Kilometer

20 Kilometers(Min.Order)

Supply Ability 20000 Kilometer / Kilometers per Month
Port Shanghai/Ningbo
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Dong Sheng
Model Number	Coaxial Cable 16 Core BT3002	Type	Coaxial
Number of Conductors	1

Product Description

Specifications

1) European quality Coaxial Cable 16 Core BT3002
2) Since 1991 year
3) Application for telecommunication
4) ISO/CE/ROHS

European quality Coaxial Cable 16 Core BT3002

Coaxial Cable 16 Core BT3002

Product Specification:

Telecom Coax Cable BT Series
	The British Telecom types BT3002 suitable for the interconnection of telecommunication transmission equipment. They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system.They also available in both single and multi-core versions, in standard PVC and LSOH versions.

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
BT2001	75	7/0.2 BC	FPE	TC	PVC	4.40
BT2002	75	7/0.2 BC	FPE	2×TC	PVC/LSZH	5.10
BT2003	75	1/0.61 BC	PE	2×TC	PVC/LSZH	6.70
BT3002	75	1/0.31 BC	PE	2×TC	PVC/LSZH	3.55
BT3002*8 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	16.0
BT3002*16 Core	75	1/0.31 BC	PE	2×TC	PVC/LSZH	21.0

RG174 mini coaxial cable ,Mini Coaxial Cable RG59 1885A , Sub-Miniature 59/U(1865A)

Miniature Coax Cable

Mini RG59(1855A)

Sub-Miniature 59/U(1865A)

RG174 mini-coax

RG178 mini-coax

RG179 mini-coax

RG188 A/U

0.81 mm Mini-Coax

1.13 mm Miniature Coax

1.32 mm Miniature Coax

1.37 mm Miniature Coax

1.48 mm Miniature Coax

Miniature Coax Cable » Mini RG59(1855A)

Mini RG59(1855A) is the HDMI(High Definition Multimedia Interface) cable. HDMI cable to transmit through a high-definition, all-digital audio and video content. HDMI is the future direction of HDTV (high definition television).
• Mini RG59 have 23 AWG solid bare copper conductors, Foamed HDPE insulation, 100% bonded foil shield and 95% tinned copper braid shield, PVC jacket. • Return Loss: 5MHz to 1600MHz>23 dB ; 1601MHz to 4500MHz >21 dB. • Out jacket following colors: brown, red, orange, yellow, blue, violet, gray, white, black, aqua, rose and green

Type	Imp.Ohms	Inner Conductor(mm)	Dielectric (mm)	Shield	Outer Sheath	O/D mm
MiniRG59	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	4.10
MiniRG59×3	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	11.20
MiniRG59×4	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	12.22
MiniRG59×5	75	1/0.5 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	13.80
MiniRG59×8	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	16.20
MiniRG59×10	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.22
MiniRG59×12	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	20.96
MiniRG59×16	75	1/0.58 BC	2.60 FPE	Boneded AL/P+95%TC	PVC	23.27

Packing:

1) Packing Lengths:100/roll,200m/roll,250m/roll,300m/roll

2) Inner Packing:Wooden reel,plastic reel,and paper reel

3) Outer Packing:Carton box,pull out box,pallet available

4) Other packing available according to clients’request

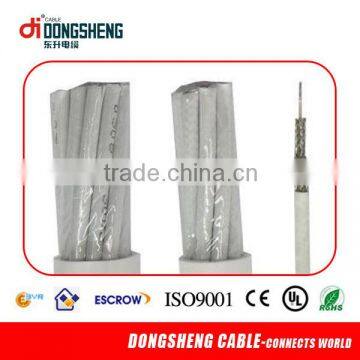

Product picture and package

Certificate:

We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.

Factory and Production line

Exhibition Trade Show

We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company and products to the future new customers.

Other Cables:

Coaxial Cable, Lan Cable, Alarm Cable, Power Cable

Telephone Cable,Optical Fiber Cable, Connector
