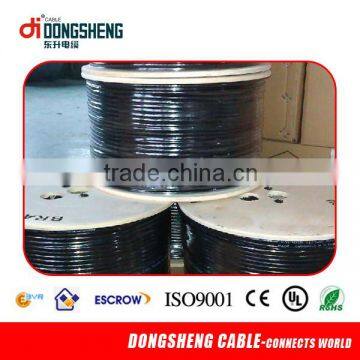

2016 hot RG6 Coaxial cable new materials for CCTV CATV satellite system cabos coaxiais rg6

FOB Price

USD $18 - $22.4 / Box

50 Boxes(Min.Order)

Supply Ability 10000 Box / Boxes per Month
Port Shanghai/Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Model Number	rg6
Type	Coaxial		Number of Conductors	1

Product Description

RG6 Coaxial cable for CCTV CATV satellite system rg6 cable

Specification :

RG6 coax cable

1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70,75
9) Jacket :PE or PVC

10) OEM and Customer's designation are welcome

RG6 coax cable

1.02mm CCS + 4.6mm FPE + AL Foil Bonded + 96*0.12mm Al Braiding 60% coverage + 6.91mm PVC

Electrical Characteristics :

1) Characteristics Impedance: 75+/- 3 Ohms

2) Capacitance Conductor to Shield: 53.1 pF/m

3) Velocity of Propagation : 82%

4) Delay: 4.065 ns/m

5) Min.Structural Return Loss (5-3000MHz) : 20 dB

6) Max. Attenuation :

@ Frequency (MHz)	dB/100 ft (MAX.)	dB/100 meters(MAX)
5 MHz	0.58 dB	1.90 dB
55 MHz	1.60 dB	5.25 dB
211 MHz	1.95 dB	10.00 dB
250 MHz	2.85 dB	10.82 dB
270 MHz	3.05 dB	11.04 dB
300 MHz	3.30 dB	11.64 dB
330 MHz	3.55 dB	12.26 dB
350 MHz	3.85 dB	12.63 dB
400 MHz	4.15 dB	13.61 dB
450 MHz	4.40 dB	14.43 dB
500 MHz	4.66 dB	15.29 dB
550 MHz	4.90 dB	16.08 dB
600 MHz	5.10 dB	16.73 dB
750 MHz	5.65 dB	18.54 dB
870 MHz	6.10 dB	20.04 dB
1000 MHz	6.55 dB	21.46 dB
1300 MHz	7.46 dB	24.49 dB
1450 MHz	7.89 dB	25.89 dB
1750 MHz	8.74 dB	28.67 dB
2150 MHz	9.69 dB	31.79 dB
2600 MHz	10.76 dB	35.30 dB
2832 MHz	11.55 dB	37.74 dB
3000 MHz	11.84 dB	38.84 dB
