QR540 coaxial cable
- 20000 Box / Boxes per Month
- Shanghai/Ningbo
- T/T
You May Like
-
Telecommunications Good quality with cheap price for rg59 cable price
-
Telecommunications Good quality with cheap price for rg59 coaxial cable price
-
Telecommunications Good quality with cheap price for Coaxial Cable Lead Free PVC For RG59 /RG6 /RG11
-
Telecommunications Best price RG59 cable TV wire
-
Telecommunications Best price RG59 cable TV wire RG59 Best selling flexible telephone electrical coaxial cable
-
Telecommunications Good quality with cheap price for RG 59 Coaxial+2C Power Cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dong Sheng | |
| Model Number | QR540 Cable Coaxial 75 ohm | |||
| Number of Conductors | 1 |
Product Description

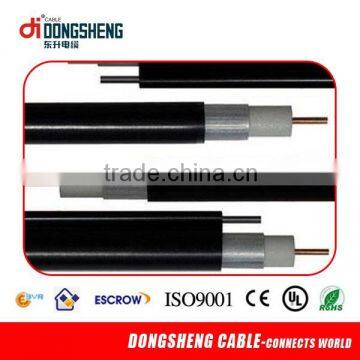

QR540 coaxial cable
QR540 coaxial cable
Product specification:
QR540 coaxial cable | TYPE: | QR540 coaxial cable | ||
Construction | ||||
Item | Material | Diameter(mm) | ||
Center Conductor | Copper Clad Aluminum | 3.15 | ||
Dielectric | Foam PE | 13.05 | ||
Outer Shield | RF Welded,Solid Aluminum Tube 0.343thickness | 13.72 | ||
Jacket | Medium Density PE | 15.49 | ||
Electrical Charateristics | ||||
Impedance(Ω) | 75±3 | |||
Capacitance(pF/m) | 50±3 | |||
Velocity of Propagation(%) | 88.0 | |||
DC Loop Resistance(Ω/km) | 5.28 | |||
Maximum Pulling Tension(kgf) | 100 | |||
Return Loss | ||||
5-1000MHZ(dB) | ≥22 | |||
@Frequency(Mhz) | Max Attenuation(dB/100m) | ||
5 | 0.46 | ||
55 | 1.54 | ||
83 | 1.90 | ||
211 | 3.12 | ||
250 | 3.38 | ||
300 | 3.71 | ||
350 | 4.03 | ||
400 | 4.33 | ||
550 | 5.12 | ||
600 | 5.38 | ||
750 | 6.07 | ||
865 | 6.56 | ||
1000 | 2.17 | ||
QR540 coaxial cable Packaging: 1) 500m/wooden reel 2)750m/wooden reel 3)1000m/wooden reel
QR540 coaxial cable Applications
(1) CATV-community antenna television.
(2) CCTV-closed-circuit television.
(3) DBS-direct broadcasting satellite.
Coaxial Cable RG6 RG59 RG11
1) 75 ohm cable coaxial rg59
0.81mm CCS /CU+3.66mm FPE+Bonded Al Foil+64*0.12mm Al +6.0mmPVC
2) 75 ohm cable coaxial rg6
1.02mmCCS /CU+4.57mmFPE+Bonded Al Foil+64*0.16mmAl+6.9mmPVC+1.3 Messenger steel
3) 75 ohm cable coaxial rg11
1.63mmCCS/ CU+7.11mmFPE+Bonded Al Foil+128*0.15mmAl+10.03mmPVC+1.83mm Messenger Steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
Cable Picture and Package
Factory Show
Certification
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector
18) Indoor TV Antenna, Outdoor TV Antenna
