Home > Products > Coaxial CCTV/CATV Cable > CCTV CATV Coaxial Cable RG11
CCTV CATV Coaxial Cable RG11
- 10000 Kilometer / Kilometers per Month
- ningbo or shanghai
- T/T D/P D/A
You May Like
-
new materials in stock for CCTV CATV satellite system cable rg6
-
Best price RG59 cable TV wire security camera in stock rg59 cctv cable
-
Best price RG59 cable TV wire SYV 75, 3C-2V, in stock RG59 Coaxial Cable
-
Best price RG59 cable TV wire 75ohm coaxial cable in stock Rg59 coaxial cable
-
lmr-400-uf communications cable
-
Cable Coaxial RG11 Messenger
Product Details
| Place of Origin | Zhejiang, China | Brand Name | dongsheng | |
| Model Number | RG11 | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
CCTV CATV Coaxial Cable RG11
RG11
Product Specification:
Coaxial Cable-CATV/MATV | TYPE: | RG11BVM-90% | ||
Construction | ||||
Item | Material | Diameter(mm) | ||
Center Conductor | Copper Clad Steel | 1.63 | ||
Dielectric | Foam PE | 7.11 | ||
1st Shield | Bonded Aluminum Foil | 7.29 | ||
2nd Shield | Aluminum Wire Braiding 60%~90% | 6*16*0.16 or 9×16×0.16 | ||
Jacket
| PVC | 10.06 | ||
Messenger
| Galvanized Steel | 1.83 | ||
Electrical Charateristics |
|
| ||
Impedance(Ω) | 75±3 | |||
Capacitance(pF/m) | 52±2 | |||
Velocity of Propagation(%) | 85.0 | |||
Shielding Effectiveness |
| |||
5-1000MHZ(dB) | ≥90% | |||
Return Loss |
| |||
5-1000MHZ(dB) | ≥22 | |||
1000-2000MHZ(dB) | ≥20 | |||
|
| |||
Attenuation @68°F.(20 ℃ ) | ||||
@Frequency(Mhz) | Max Attenuation(dB/100ft) | Max Attenuation(dB/100m) | ||
5 | 0.38 | 1.25 | ||
55 | 0.96 | 3.15 | ||
187 | 1.75 | 5.74 | ||
211 | 1.90 | 6.23 | ||
400 | 2.60 | 8.53 | ||
500 | 2.90 | 9.51 | ||
750 | 3.65 | 11.97 | ||
865 | 3.98 | 13.05 | ||
1000 | 4.35 | 14.27 | ||
1500 | 5.10 | 16.80 | ||
1800 | 5.70 | 18.60 | ||
2200 | 6.30 | 20.70 | ||
3000 | 7.60 | 24.90 | ||
COAXIAL CABLE Spec:
1) 75 ohm cable coaxial rg59 67% or 95%
0.81mm CCS /CU+3.66mm FPE+Bonded Al Foil+67% 0r 95% mm Al +6.0mmPVC
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
2) 75 ohm Cabo Siamese Cable RF 4mm+2*26AWG
7*0.18 mm CCA+2.4±0.10 mm SPE+16*4*0.12mm80% CCA+4.10mmPVC+2*26AWG
Packing: 100m/Roll, 300m/Plastic reel
3) 75 ohm cable coaxial rg6 67%
1.02mmCCS /CU+4.57mmFPE+Bonded Al Foil+ 67% 0r 95% mm Al +6.9mmPVC+1.3 Messenger steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum
4) 75 ohm cable coaxial rg11
1.63mmCCS/ CU+7.11mmFPE+Bonded Al Foil+128*0.15mmAl+10.03mmPVC+1.83mm Messenger Steel
Packing: 100m/Roll, 200m/Roll, 305m/Wooden drum, 500m/wooden drum

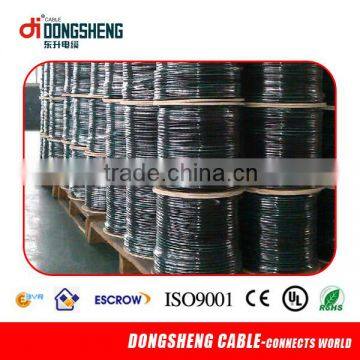

Products Photos and Package
Factory Show
Certification
Testing Equipment
Exhibition
Other Cables:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable( ADSS,GYXTC8S, GYXTC8Y, FTTH ect.)
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C, Cat5e+ 4 Core Cable
7) 75 ohm Trunk CATV Cable QR750 QR540 QR500 QR412
8) Koaxial Kable CT100 , KX6, KX8 XK100 ,17VATC,19VATC, SAT703, BT3002
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50 ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
