Home > Products > Control Cable/Power Cable/Electrical Cable > Best Factory price 227 iec 53(rvv) cable
Best Factory price 227 iec 53(rvv) cable
- FOB Shanghai
- T/T D/P D/A
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | DS | |
Model Number | Power cable | Insulation Material | PE | |
Type | Low Voltage | Application | Industrial | |
Conductor Material | Copper | Jacket | Other, PVC, PVC |
Product Description
Specifications
1.Rated temperature105C2.Rated voltage300V
3.Reference standardUL758,UL1581,CSA C22.2No.210.2
Best Factory price 227 iec 53(rvv) cable
1. Applications
Suitable for use in conduit and for fixed, protected installation of Wiring Burglar Alarm, Public Address Systems,
Intercoms, Telephone Stations, Speakers, Instrumentation, Control and other Low Voltage Circuits that are Power- Limited and anti-interference needed
2. Construction
Stranded Bare Copper Conductor and PVC Insulated
3.Packing
100m, 500FT, 200m, 1000FT, 500m
4.Technical Data
Temperature Range: -20°C to +70°C
Max Working Voltage: 300/500V, 450/750V
Max Current: 1 amp per core
5.Specifications
Model No. | Conductor | Insualtion | Jacket | ||||
Cores × Nom. Area | Max. Resistance at 20°C | Thickness | Min. Resistance at 70°C | Thickness | Min. Dia. | Max. | |
mm² | MΩ/km | mm | MΩ/km | mm | mm | mm | |
RVV2×0.75 | 2×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6 | 7.6 |
RVV2×1.0 | 2×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.4 | 8 |
RVV2×1.5 | 2×1.5 | 13.3 | 0.7 | 0.01 | 0.8 | 7.4 | 9 |
RVV2×2.5 | 2×2.5 | 7.98 | 0.8 | 0.009 | 1 | 8.9 | 11 |
RVV3×0.75 | 3×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.4 | 8 |
RVV3×1.0 | 3×1.0 | 19.5 | 0.6 | 0.01 | 0.8 | 6.8 | 8.4 |
RVV3×1.5 | 3×1.5 | 13.3 | 0.7 | 0.01 | 0.9 | 8 | 9.8 |
RVV3×2.5 | 3×2.5 | 7.98 | 0.8 | 0.009 | 1 | 9.6 | 12 |
RVV4×0.75 | 4×0.75 | 26 | 0.6 | 0.011 | 0.8 | 6.8 | 8.6 |
RVV4×1.0 | 4×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 7.6 | 9.4 |
RVV4×1.5 | 4×1.5 | 13.3 | 0.7 | 0.01 | 1 | 9 | 11 |
RVV4×2.5 | 4×2.5 | 7.98 | 0.8 | 0.009 | 1.1 | 10.5 | 13 |
RVV5×0.75 | 5×0.75 | 26 | 0.6 | 0.011 | 0.9 | 7.4 | 9.6 |
RVV5×1.0 | 5×1.0 | 19.5 | 0.6 | 0.01 | 0.9 | 8.3 | 10 |
RVV5×1.5 | 5×1.5 | 13.3 | 0.7 | 0.01 | 1.1 | 10 | 12 |
RVV5×2.5 | 5×2.5 | 7.98 | 0.8 | 0.009 | 1.2 | 11.5 | 14 |

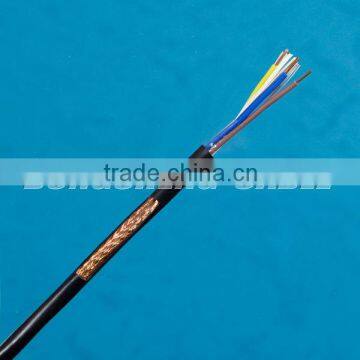

6. Products Photos:
Packing:
100m/roll, 200m/roll, 300m/wooden reel
7.Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
8.Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
1.Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
10.More types of Cables we do
We also produce these cables for more than 20 years, RG6,RG11,RG59 COAXIAL CABLE, TELEPHONE CABLE, ALARM CABLE.MICROPHONE CABLE etc.
Hangzhou Lin`an Dongsheng Cable Co.,Ltd, was established in 1991,located at the foot of the Tianmu Mountain in Lin`an city, is 28km away from Hangzhou City, which is close to Shanghai port and Ningbo port with facilitated transportation
As a professional cable manufacturer in china,We specialized in producing of Coaxial Cable RG59,RG6,RG11 CATV and CCTV, Lan Cable Cat3,Cat5e,CAT6 UTP/FTP /SFTP for Indoor and Outdoor,Telephone Cable,Combined Cable,and cable accessories etc. We are covering 1,6000 square meters,including standard workshops and warehouse,to ensure your goods in goods production condition.
Meanwhile,Our company has obtained ISO9001,also our products has passed CE,RoHS ,UL certificate,which is Promise high quality cable .
Dongsheng Cable products have been exported to Southeast Asia ,Middle East, European,South America,USA and gain good reputation.We will meet client requirements with top quality,advanced technology,perfect management and excellent service
“Dongsheng”.We are looking forward to establishing long term&mutual benifit business relationship with you
