Low loss PE foaming cable lmr 400( Rohs and ISO9001)
- Shanghai or Ningbo
- T/T L/C D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DSC | |
| Model Number | Coaxial Cable | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
Low loss PE foaming cable lmr 400( Rohs and ISO9001)
lmr 400
Specifications
1. High quality with reasonable price.
2. IOS9001, RoHs.
3. OEM is OK.
Detailed Information
Packaging & Delivery
Packaging Detail: 500m/wooden reel 1000m/wooden reel.
Delivery Detail: 10-30 days after deposit.

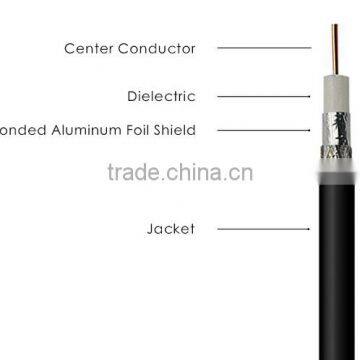

Physical Dimensions | ||
Component | Diameter | Material |
Conductor | Material | Bare copper |
Nom. Dia. | 2.74mm | |
Dielectric | Material | Foam PE |
Nom. Dia. | 7.24mm | |
Shield | Material | Bonded Al foil +0.12*168 Al braiding |
Coverage | 95% | |
Jacket | Material | PVC |
Nom. Thick. | 1.09mm | |
Nom. Dia. | 10.02mm | |
Electrical Performance | |
Nominal Impedance(Ohm) | 50 |
Nominal capacitance(pF/m) | 84 |
Velocity of Propagation (%) | 85 |
Cutoff Frequency(GHz) | 16.2 |
Screening Effectiveness | >90 |
Sparker Test (VAC) | 4000 |
Attenuation | ||
Frequency(MHz) | Maximum(dB/100m) | Maximum(dB/100ft) |
150 | 4.92 | 1.50 |
300 | 7.20 | 2.19 |
450 | 8.86 | 2.70 |
960 | 13.22 | 4.03 |
1500 | 16.73 | 5.10 |
2000 | 19.68 | 6.00 |
2500 | 22.31 | 6.80 |
Application
axial cable for CATV, CCTV systems.
2.Plus F as connection cable
3.For satellite systems.
Transportation
1. All available shipping ways could be applied, by courier, air or sea.
2. Appointed shipping company or our own forwarders all could be used in shipment .
3. Full -way tracking the cargos for you before the goods arrive .
Products Photos:
24 hours Contact information:
Contact Pesron: Mr Nathan Zhou
Skype: nathan110211
Cell phone: 86-13758228194
