Home > Products > Coaxial CCTV/CATV Cable > RG6 Coaxial Cable with UL Listed
RG6 Coaxial Cable with UL Listed
- Shanghai/Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dong Sheng | |
| Model Number | RG6 Coaxial Cable with UL Listed | Type | Coaxial | |
| Number of Conductors | 1 |
Product Description
RG6 Coaxial Cable with UL Listed
RG6 Coaxial Cable
Product Spec
RG6 Coaxial Cable,RG6, RG6 Triple,Cabo Coaxial 06,RG6 Quad,RG6 Messenger Cable
Belden RG6 Cable Coaxial | TYPE: | RG6 Cable Coaxial | ||
Construction | ||||
Item | Material | Diameter(mm) | ||
Center Conductor | CCS/BC | 1.02 | ||
Dielectric | Foam PE | 4.57 | ||
1st Shield | Bonded Aluminum Foil
| 4.75 | ||
2nd Shield | Aluminum Wire Braid CCA Wire Braid BC Wire Braid
| 3×16 4×16 5×16 0.12mm,0.16mm 6×16 7×16 8×16 9×16 | ||
3rd Shield | Aluminum Foil or
| / | ||
Jacket
| PVC | 6.9 | ||
Messenger | Galvanized Steel | 1.30 | ||
Electrical Charateristics |
|
| ||
Impedance(Ω) | 75±3 | |||
Capacitance(pF/m) | 52±2 | |||
Velocity of Propagation(%) | 85.0 | |||
Shielding Effectiveness |
| |||
5-1000MHZ(dB) | ≥90% | |||
Return Loss |
| |||
5-1000MHZ(dB) | ≥22 | |||
1000-2000MHZ(dB) | ≥20 | |||
|
| |||
Attenuation @68°F.(20 ℃ ) | ||||
@Frequency(Mhz) | Max Attenuation(dB/100ft) | Max Attenuation(dB/100m) | ||
5 | 0.58 | 1.90 | ||
55 | 1.60 | 5.25 | ||
187 | 2.85 | 9.35 | ||
211 | 3.05 | 10.00 | ||
400 | 4.15 | 13.61 | ||
500 | 4.66 | 15.29 | ||
750 | 5.65 | 18.54 | ||
865 | 6.10 | 20.01 | ||
1000 | 6.55 | 21.49 | ||
1500 | 8.20 | 26.80 | ||
1800 | 8.80 | 28.90 | ||
2200 | 9.80 | 32.20 | ||
3000 | 11.50 | 37.60 | ||

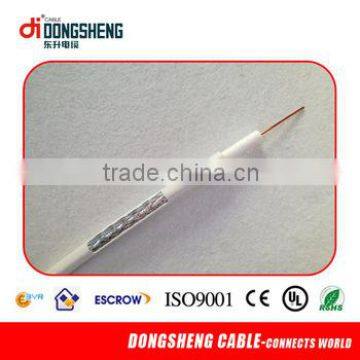

Coaxial Cable RG6 Products Photos
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients’ request
Factory Show
KINDS OF Certification
Such as: CE,ISO,UL Certificate
Testing Equipment
Exhibition Trade Show
We attend to 3-5 Fairs in Beijing CCBN, Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
SUPPLY KINDS OF CABLES:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
3) Security Alarm Cable / Fire Alarm Cable
4) Optical Fiber Cable
5) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
6) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
7) Trunk Cable QR750 QR540 QR500 QR412
8) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
9) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
20) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTTH ,GYXTC8S,GYXTC8Y etc.)
