Immersion /injection Sampler Part for Molten Steel/iron

Cangzhou Qirun Detecting & Instrument Co., Ltd

Production Department:

Usage1

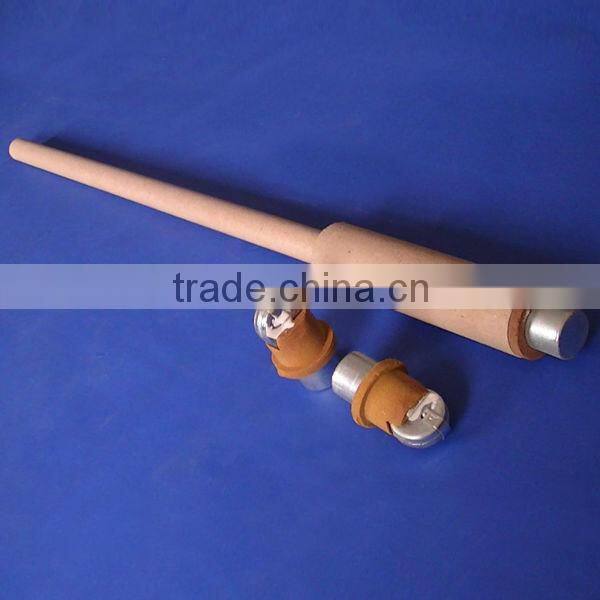

Immersion sampler is used for obtaining sample of steel to get chemical analysis.It's available to suit all furnace,ladle and certain tundish applications.Offering choice of deoxidant type and length.

Specification:

1)Type: Immersion sampler with deoxidant
2)Model:QR-342Y-600
3)Disc diameter: φ34*12mm
4)Card board sleeve length:580mm(we can also customer-made the length according to the customer's requirements)

1)Type: Immersion sampler without deoxidant
2)Model:KQ-342N-600
3)Disc diameter: φ34*12mm

4)Card board sleeve length:580mm(we can also customer-made the length according to the customer's requirements)

Spoons are available in a variety of thicknesses and diameters and in 3 distinct shapes: Round,Oval and Double Thick.

 Usage2

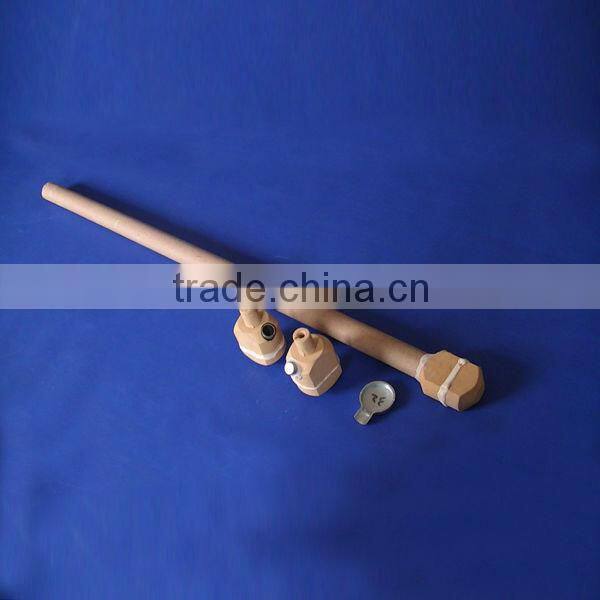

Injection samplers for molten steel is used for obtaining sample of molten steel to get chemical analysis.It`s available to suit all furnace,ladle and certain tundish applications.

These samplers are available both with and without the deoxidants of Al or Zr,as per the requirement of the customer.

The dimension of the sampling molds Ø32mm*13mm(can be changed)

(we can also customer-made the length according to the customer's requirements)

Our products through the the ISO international quality certification.
