Home > Products > Beer/Milk/Juice sterilizer > Beer series Plate Heat Exchanger (UHT) sterilizer
Beer series Plate Heat Exchanger (UHT) sterilizer
- ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | Haichuan | Model Number | G-005 | |
| Usage | Other, Fruit & Vegetable | Type | Ultra High Temperature | |
| Voltage | 220V/380V..... | Power(W) | 15/24/30.... | |
| Weight | PENDING | Dimension(L*W*H) | PENDING | |
| Certification | ISQ/CE | Warranty | 2 YEARS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Details of machine :

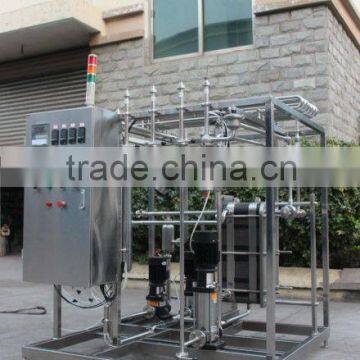

plate sterilizer/pasterizer PHE
Features:
BR series Plate heat exchanger sterilizer is applied in beer industry to heat and cool materials. The flavour of beer will be retained. It is necessary for asoptic filling line .
We can design the plate heat exchanger on the basis of heating , sterilization , holding time , and cooling .
The plate heat exchanger can be controlled by digital automatic controller and is safeguarded. The accuracy of the controlled sterilizer temperature can be reached up to +/-0.1°C. It should be cleaned by CIP . This plant had heat recovery stage and saves energy , heat exchanging efficiency can be reached to 90% . The customers enjoy it .
Type: BR-PJ
Capacity: 1~30T/H
Beer inlet temperature : 1~4°C
Sterilization temperature : 72°C
Beer outlet temperature : 2~4°C
Pasteurizaion unit : 25PU
Beer working pressure : 0.2~0.3Mpa
Sterilization pressure : 0.9~1.0Mpa
Ice water cooling : -2~0°C
Ice water : 1:2
Type and specification | Capacity (L/H) | Steam consumption (KG/H) | Cooling (KCA/H) | Power (KW) | Outline dimension ( L x W x L ) | Weight (KG) | (Φ)Diameter | ||
material | steam | medium | |||||||
BR1.2-XPJ-1SJ | 1,000 | 121 | 6,000 | 2.4 | 170x150x200 | 580 | Φ25 | DN20 | Φ25 |
BR1.2-XPJ-2SJ | 2,000 | 24 | 12,000 | 2.4 | 170x150x200 | 610 | Φ25 | DN20 | Φ38 |
BR1.2-XPJ-3SJ | 3,000 | 36 | 18,000 | 3.9 | 170x150x200 | 640 | Φ38 | DN20 | Φ38 |
BR-2.5-XPJ-5SJ | 5,000 | 60 | 30,000 | 4.4 | 200x160x220 | 750 | Φ38 | DN25 | Φ51 |
BR2.5-XPJ-10QJ | 10,000 | 120 | 36,000 | 11.7 | 250x160x250 | 780 | Φ51 | DN25 | Φ51 |
BR3A-XPJ-15QJ | 15,000 | 180 | 36,000 | 11.7 | 250x180x250 | 780 | Φ51 | DN25 | Φ51 |
BR3A-XPJ-20QJ | 20,000 | 240 | 48,000 | 16.0 | 300x180x250 | 1130 | Φ51 | DN25 | Φ63 |
BR4-XPJ-25QJ | 25,000 | 300 | 60,000 | 17.5 | 300x300x250 | 1190 | Φ51 | DN25 | Φ63 |
BR4-XPJ-30QJ | 30,000 | 360 | 72,000 | 19.5 | 300x300x250 | 1190 | Φ51 | DN25 | Φ63 |
