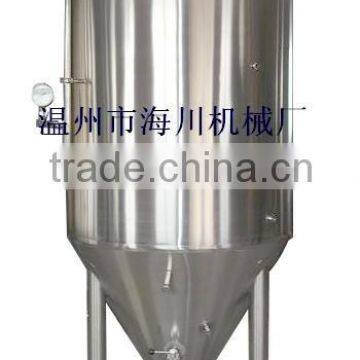

fermentation cylinder

We can supply single-layer, double-layer and three-layer stainless steel tanks with or without agitation to blend product.Single-layer tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards ).

The tank adopts vertical or horizontal and single-layer or double-layer structure and adds heat insulating layer according to the requirements of customers. The inner layer is be polished to Ra0.45μm and the outside surface adopts mirror or frosted plate to keep warm. There are water inlet, reflux inlet, sterilizing inlet, cleaning inlet, manhole cover and 0.45μm air respirator.

Application field

Used as liquid storage tank, liquid composing tank, temporary storage tank , rawness milk tank, processed milk tank, mixing tank, waiting for filling tank, etc.

Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Technical information

a. Seal: Mechanical Seal, Packing Seal, Hermetic Seal, Rubber Lip Seal

b. Heating/Cooling:

Heating: Electric heating, steam heating, hot water circulation heating, hot oil circulation heating ,etc.Cooling: jacket cooling or limpet coil inside/outside the kettle.

c. The auxiliary devices are as below:

·Mixer

·High-low liquid-level alarm

·Feeding/discharge hole

·Fly-resistant, dustproof breathing pores

·Manhole

·Asepsis sampling port

·Thermometer

·Meter

·Fluid level indicator

·CIP Cleaning spray head

Structure characteristics

Top cover: can open and cover to seal;

The top: charging valve, dustproof respirator, illumination vision mirror ;

Around: the inlet and outlet of hotcold water, there are manual ball valves;

Bottom: furnished with the angle valve, a temperature sensor, lower wheel of six universal feet, with the brake device,

Adjustable lower speed blender, The material of the inner layer is made of 316L, Interior polished Ra<0.4& micro .The middle and external layers is made of 304. polished Ra<0.8& micro. Sealing material is VITON. The heat preservation is adopted ROCK COTTON. All electric apparatuses of apparatus in order to set up waterproof.

1. Made of single-layer stainless steel structure.

2. Materials are all sanitary stainless steel.

3. Humanized structure design and easy to operate.

4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comerof sanitation.

5. Quick open manhole.

6. Various types of CIP cleaners.

7. Fly and insect resistant sanitary breathing cover.

8. Adjustable triangular bracket.

9. Dismountable materials input pipe assembly.

10. Thermometer (According to customer requirements).

11. Ladder (According to customer requirements).

12. Liquid level meter and level controller (According to customer requirements ).

13. Eddy-proof board.

According to different storing capacities, there are 1000-15000L models. The tanks with storing capacity of above 20000L are advised to use outdoor store tanks which are made of SUS304 and feature good heat insulation ability.

Welcome to consult with our sales engineers. Together with application engineers, they will provide you with a most reasonable scheme.Specifications

1.Vertical/Horizontal, Stainless Steel 2.Store water, milk or other liquid product 3.Mirror Polish-sanitary standard polish
