Home > Products > New Products > JK721 cutting plotter(practical type)

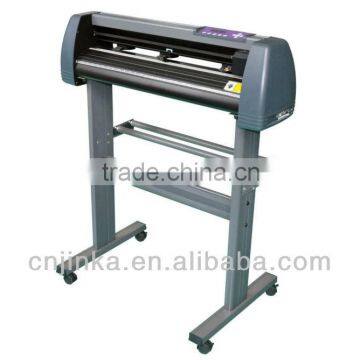

JK721 cutting plotter(practical type)
US$ 100 - 180
/ Set
1 Set(Min. Order)
- shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Anhui, China | Model Number | JK721(pratical type) | |
| Voltage | AC90V-240V | Cache Capacity | 1-4M | |
| Paper Feed Width | 720mm | Cutter Pressure | 500g | |
| Cutting Width | 630mm | Cutting Speed | 800mm/s | |
| Driver | stepper,servo | Cutting Length | any length | |
| Repeat Cutting | yes | Size | 95*38*45cm |
Product Description
Specifications
JK721 cutting plotter(practical type)Eurpean popular large screen high bright display.supporting hot plugging
JK721 cutting plotter(practical type)
fessionally integrated circut with high precision and high speed.In time regulation on speed and force,setup the origin point at discretion.
2.advanced aluminum alloying structure excellent workmanship,long used life and durability.
3.origin imported high speed stepping motor,low noise,cutting more precisely.
4serial and USB port,large memory.quick off-line.
5.domestic popular plotting language,supporting many popular kinds of software on the market.
6.unique double cutter positon,double pressing strips for processing different kinds of materials.
7.unique blade soft landing function,easy for cutting.
| Practical type with screen display | |||||
| Practical 361 | Practical 721 | Practical 871 | Practical 1101 | Practical 1351 | |
| max paper width | 360mm | 720mm | 870mm | 1100mm | 1350mm |
| max plotter width | 270mm | 630mm | 780mm | 1010mm | 1260mm |
| stand | simple iron stand | alloy stand | |||
| mainborad | double layer mainboard/JK-6 mainboard | square mainboard/doulbe layer mainboard/JK-6 mainboard | |||
| carriage | normal single/double position carriage/optical eye carriage/liner carraige | ||||
| speed | square mainboard/double layer mainboard:10~800mm/s(decimal) / JK-6main board:10~1000mm/s(decimal) | ||||
| pressure | square/double layer main board:10~500g(decimal) / JK-6mainboard:0~600g(decimal) | ||||
| Buffer | square/double layer mainboard:1M/4M ; JK-6main board:1/4M | ||||
| Screen display | display speed,pressure,(square/double layer mainboard,GH with memory/EH without memory/INCH calc with INCH) (JK-6 mainboard:Jinka/USCutter/Refine/Cutting plotter-JK) | ||||
| connection port | square/double mainboard:Serial+USB/Parallel/JK-6 mainboard:Serial+USB | ||||
| adjustment | support adjust speed or pressure while running | ||||
| software | ARTCUT/Master/CorelDRAW/FlexiSTARTER Jinka Edition 10.5(contour cut need optical eye carriage) | ||||
| media | thickness less than 1mm with cussion media like stiky note,self-adhesive paper..etc | ||||
| redraw | yes | ||||
| repeat accuracy | 0.127mm | ||||
| resolution | 0.0245mm/step | ||||
| power supply | square/double mainboard:quad(-8V,5V,16V,36V)power supply 70W / JK-6mainboard:threeway(5V,15V,30V)power supply 65W | ||||
| language format | DMPL/HPGL | ||||
| voltage | 85~264V | ||||
| color | light gray,dark gray,black | ||||
| computer | WindowsXP/WindowsVista/Windows7/Windows8(32bit&64bit) | ||||
| environment | temperature:+5°C±35°C,related humidity:30%~50%(without condensation water) | ||||
| remark:“()”included instruction info,“/” say optional. | |||||
