Home > Products > Patch Cable/Opitical fiber Cable with plugs > RJ45 Patch Lead Cat5e Cat6 24AWG Patch cable

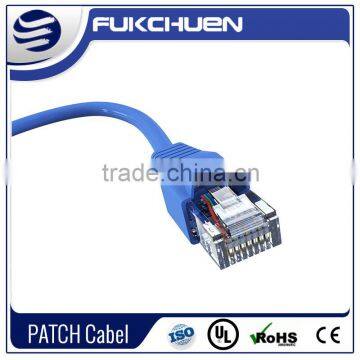

RJ45 Patch Lead Cat5e Cat6 24AWG Patch cable
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
UTP/FTP/SFTP cat5e networking patch cable
-
high speed cat5e rj45 patch cable jamper cable
-
Networking Cat5e/Cat6/Cat7 Communication Patch Cables
-
shenzhen factory bare copper network cable 3m cat6 utp RJ45 patch cable 3m 2m 1m 0.5m
-
Flat utp Cat5e RJ45 patch cord cable
-
SFTP Cat6 patch cord /shielded rj45 network cable
Product Details
| Place of Origin | Guangdong, China | Brand Name | Fukchuen | |
| Model Number | patch cable |
Product Description
Specifications
RJ45 Patch Lead Cat5e Cat6 24AWG Patch cableSpecifications
ethernet cables
1.Factory price
2.Excellent transmit
3.T/T,L/C
4.UL/ROHS/CE
1.Specification: 4P
2.Rated Temperature: -45 °C - 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Jacket: PVC or LSNH
7.Impedance:100±15%Ω at 1~100MHz
8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,
9.Print Legend: CM or CMR
Features
1.Fast and Reliable Connection
2.Twisted Pairs with Bright Color for Easy Recognition
3.Ripcord and Footmark for Convenient Use
4.Smooth Jacket for Easy Pulling in Tight Space
5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Cable Assembly Specification:
Shape | Conductor | Insulation | Core Number | Jacket | ||||
AWG | Specification (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | ||
Circular Cable | 26 | 1/0.404 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 4.8 |
7/0.16 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.0 | ||
24 | 1/0.511 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.4 | |
7/0.203 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.5 | ||
Flat Cable (Non-sign) | 30 | 7/0.10 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.75*6.2 |
28 | 7/0.127 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.90*7.0 | |
24 | 7/0.203 | HD-PE | 0.18 | 4P | PVC | 0.50 | 3.0*9.0 | |
