Home > Products > Power Cable > 230KV XLPE 400MM2 COPPER POWER CABLE

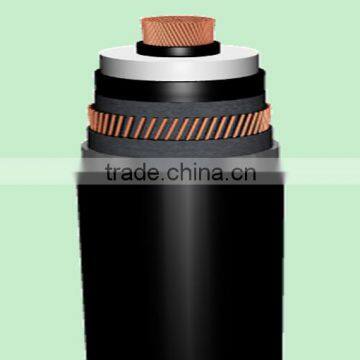

230KV XLPE 400MM2 COPPER POWER CABLE
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM OR FUKUKAWA | |
| Model Number | ARMOUR | Insulation Material | Other, PVC/XLPE | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description
220KV XLPE 400MM2 COPPER POWER CABLE
Technical details:
Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable.
Insulation: XLPE, gravity feeding in 1000 level ultra-clean environment.
Product line: VCV/CCV
Metallic screen/sheath: Option 1) Welded corrugated aluminum sheath
Option 2) Extruded Corrugated aluminum sheath
Option 3) Copper wire + poly laminated sheath
Outer sheath: PVC, MDPE, HDPE, LDPE
Characteristic of use:
- Allowable max. long-time operation temperature of cable conductor: 90°C
- Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C
- Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter
Main Cross sections for 127/220kV Power Cable:
400mm2, 500mm2, 630mm2, 800mm2, 1000mm2, 1200mm2, 1400mm2, 1600mm2, 1800mm2, 2000mm2, 2500mm2
Contact Us
- Dongguan Fukchuen Wire&Cable Co., Ltd.
- Contact nameWilliam Q Chat Now
- Phone0086-0769-87556668
- AddressQinTang Road 99,Fenggang Town, Dongguan, Guangdong
