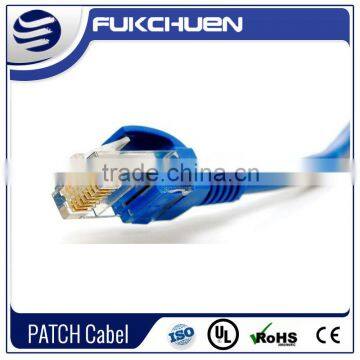

Flat utp Cat5e RJ45 patch cord cable
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Description
Specifications
Flat utp Cat5e RJ45 patch cord cableFlat utp Cat5e RJ45 patch cord cable
Specifications
ethernet cables
1.Factory price
2.Excellent transmit
3.T/T,L/C
4.UL/ROHS/CE
1.Specification: 4P
2.Rated Temperature: -45 °C - 75°C
3.Unshielded twisted pairs:
4.Conductor: 26AWG or 24AWG Stranding or Solid Bare copper
5.Insulation: HD-PE
6.Jacket: PVC or LSNH
7.Impedance:100±15%Ω at 1~100MHz
8.Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,
9.Print Legend: CM or CMR
Features
1.Fast and Reliable Connection
2.Twisted Pairs with Bright Color for Easy Recognition
3.Ripcord and Footmark for Convenient Use
4.Smooth Jacket for Easy Pulling in Tight Space
5.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement
Cable Assembly Specification:
Shape | Conductor | Insulation | Core Number | Jacket | ||||
AWG | Specification (mm) | Material | Thickness (NOM.mm) | Material | Thickness (NOM.mm) | OD (NOM.mm) | ||
Circular Cable | 26 | 1/0.404 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 4.8 |
7/0.16 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.0 | ||
24 | 1/0.511 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.4 | |
7/0.203 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.5 | ||
Flat Cable (Non-sign) | 30 | 7/0.10 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.75*6.2 |
28 | 7/0.127 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.90*7.0 | |
24 | 7/0.203 | HD-PE | 0.18 | 4P | PVC | 0.50 | 3.0*9.0 | |
