Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIBSYS | |
| Model Number | DB-CMTS8100 |
Product Description

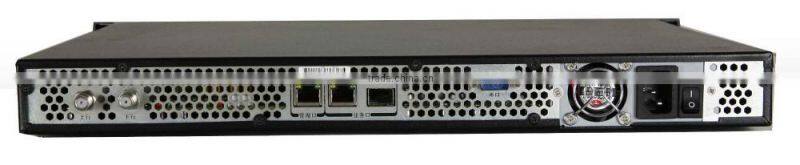

1 RU chassis CMTS
Overview
The 1 RU chassis CMTS product follow DOCSIS 3.0 standard ,Using the full DOCSIS3.0, chassis CMTS
and user device fits international DOCSIS standard, effectively meet the technical standard of future
DOCSIS. This product support 16 downstream channels to 800Mbps; 4 upstream channels to 160Mbps,
fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems online simultaneously,
fully compatible with the DOCSIS2.0, 3.0 Cable Modem.
This device deployed in front end, and completely instead of 1 RU CMTS.
The next generation DOCSIS3.0 network uses this, mixing the advantage of broadcasting and flexible
data interactive about IP net, to promote the value of broadcasting HFC net, is the "trump card" of the
Broadcasting accessing reform.
Key Features
- 19 inch standard 1U machine-case design
- 1 SFP interface and 2 RJ45 ports
- 1 100M LAN management interface
- 1 RF US and 1 RF DS, separately
- Support bulit in IPQAM module
- 4channels US, bandwidth is160Mbps, 16 channels DS,bandwidth is 800Mbps.
- Maximum output signal is 105dbuv
- Power supply is 220V/110V,less than 40W
- Upsream frequency range:5-65Mhz, down stream frequency range:87~1000Mhz
Technical specifications
DS channel specification | |
QAM standard | Annex A,B, C |
QAM modulation | 64QAM,256QAM |
Uni-channel speed | 36M@64QAM |
51M@256QAM | |
DS channels | 16 |
DS maxi speed | 800Mbps |
Work prequency | 87Mhz - 1000Mhz |
Channel bandwidth | 6Mhz,8Mhz |
Input power | 50dbmv(8 channels) |
45dbmv(16 channels) | |
Power adjusted step | 0.5db |
Post MER | 42db |
External noise | <-20dbm |
US channel specification | |
US channels | 4 |
US modulation | QFSK,16QAM,64QAM |
Uni-channel speed | 0.32Mbps - 40Mbps |
US maxi speed | 160Mbps |
Input frequency range | 5Mhz - 65Mhz |
Input level range | =H21 |
RF output specification | |
RF IN interface | F connector,75 |
RF IN quantity | 1xRFup |
RF OUT interface | F,75 |
RF OUT amount | 1xRFdown |
Data interface specification | |
Net port speed | 10/100/1000Mbps |
Net port type | 2 RJ45 |
Full speed support | Support |
Built-in ONU module | Not support |
Management specification | |
RS232 Serial | Support |
Command line(CLI) | Support |
Telnet or SSH | Support |
SNMPv1,v2,v3 | Support |
DOCSIS MIBs | Support |
Other functions | |
Maxi CM amount | 500 |
Dynamic load balance | Support |
DHCP relay | option82,option60 |
Qos | Support |
VLAN process | Support |
Environment specification | |
Work temperature | -25℃ - 75℃ |
Humility | 10% - 90% |
Alone supply | 90 - 264V |
Power | <35w |
60V centralized supply | Not support |
Size(mm) | 483×410×43 |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
