Home > Products > IRD,Decoder,Gateway > Professional 4 in 1 encrypted dvb-s2/dvb-t2 to ip IRD and gateway for broadcast digital headend and iptv headend,with IP to IP d
Professional 4 in 1 encrypted dvb-s2/dvb-t2 to ip IRD and gateway for broadcast digital headend and iptv headend,with IP to IP d
- 1000 Set / Sets per Month
- Shanghai/Hangzhou
- T/T Credit Card PayPal
You May Like
-
4MPTS/48SPTS ip out dvb-s2 satellite receiver iptv ird
-
Professional 4 in 1 dvb-s2 ip CI IRD with dvb ip gateway and iptv streamer
-
4 channels Digital Satellite Receiver dvb-s/s2 IP for IPTV headend
-
Four channels digital satellite receiver decoder with CI Slots receive encrypted channels for iptv headend
-
IPTV headend iptv decoder for encrypted channels/satellite receiver with 4* RF(DVB-C,S/S2,T/T2) tuners in,ASI/IP in and out
-
High-quality 4 channels IRD(DVB-S/S2/C) satellite internet decoder support up to 4*ip and 4*asi address output
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dibsys | |
| Model Number | IRD1340 |
Product Description
4x RF to TS De-scramber & Multiplexing IP with CI Slot

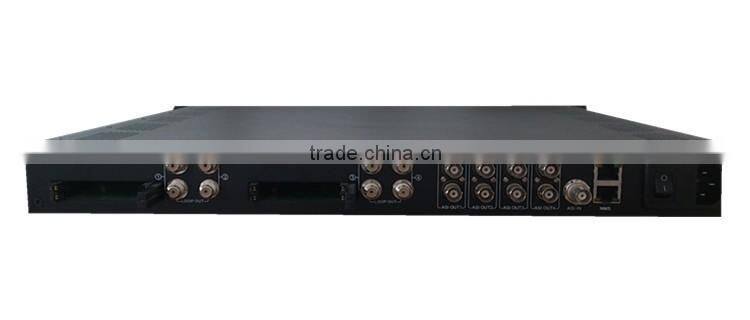

IRD1340 is a high-integration and low cost professional satellite/cable receiver which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output. It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP out. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, the IRD1340 is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.
It will be a ideal equipment for the DTV network head and edge of DTV backbone network, which can greatly save the cost in your investment.
Feature
1.4 Tuners (DVB-C,S/S2,T/T2 Option) inputs
2.1 x ASI input, 4 x IP(UDP) input;
3.Data stream Protocol of UDP,RTP/RTSP;
4.48 SPTS&4 MPTS IP over UDP and RTP/RTSP output;
5.Four CI interfaces which comply with EN50221 standard to support Multiple programs from Tuners/ASI/IP can be decrypted via 1 CAM;
6.4x separate MPEG-TS-over-IP outputs;
7.4x indenpent ASI outputs;
8.PCR correction;
9.Support maximum 128 PID mapping per input;
10.LCD display , remote control and firmware;
11.Easy-to-Use System Management :WEB NMS management,Update via web.
IRD1208
IRD1301
IRD1340
Packing
Delivery
