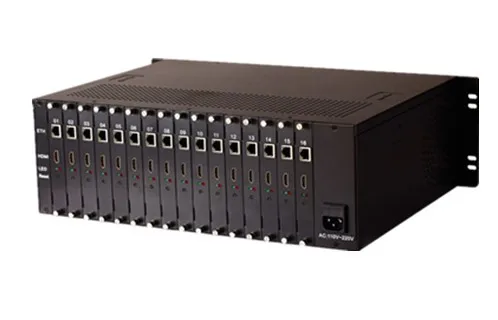

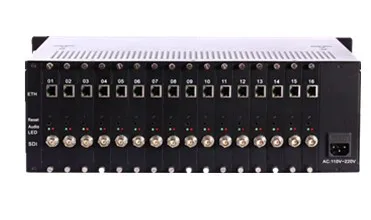

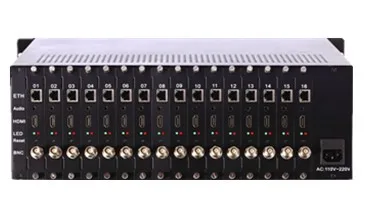

Newest Generation Only 2RU 16 Channel Hdmi Encoder H.264 Iptv Streamer

 Lowest cost and easy_to_use video streaming appliance designed for professional video producers who need to simultaneously hd and sd stream a live event. The encoder is a professional high and standard definition video coding product. The product has the function of supporting 1 channel HDMI video capture .generate dual stream of h.264 encoding output and the AAC audio format.
The product has high integration and reasonable price. From any HDMI input source such as a camera or switcher, generates an H.264_encoded stream compliant with RTSP/HTTP/UDP/RTMP protocols. The product can be applied to education, health care, IPTV, conference, remote education,news interview, banking, transportation and other industries.
MagicBox HD316 can deliver H.264_encoding video streams to various servers, such as Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers base on UDP/RTSP/RTMP/HTTP protocols.

Feature

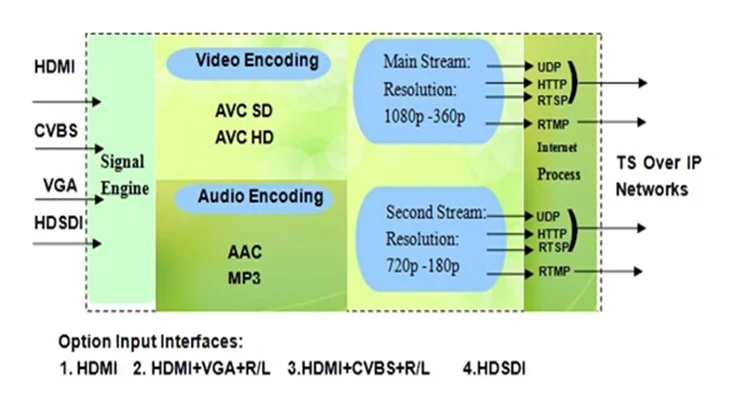

1.HDMI/HDMI+CVBS/HDMI+VGA/HD-SDI/CVBS Inputs per module

2.Support dual power supply input

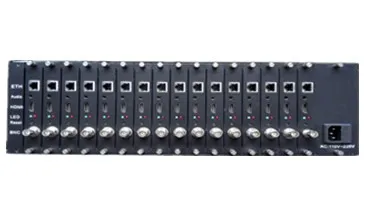

3.Three hardware version,1channel Compact, 4channel 1RU,16 channel 3RU

4.Two Protocol, Bitrate, Resolution, Profile per HDMI Source Inputs

5.Dual streams out, Each HDMI input source simultaneously support one channel up to 1920x1080p

6.Full HD and one channel 1280x720 HD output

7.Each channel stream can simultaneously support any one among the UDP/RTSP/HTTP protocol,including RTMP protocol output

8.Support the standard flow driven architecture of Microsoft(the WDM architecture),Support the WMENCODE of Microsoft

9.Be compatible with Windows VFW software architecture and WDM pattern

10.Support simultaneous display of one computer and multiple devices

11.H.264 High/Main/Baseline Profile, ACC audio

12.Video bit rates:16-12000kbps;

13.Audio bitrate:48-256kbps

14.HD-to-SD downscale conversion

15.Superior video quality at ultra_low bitrates, generally video bitrate advised SD about 680kbps,

16.720p about 1mbps,1080p about 3mbps for lowest bitrate

17.Support CBR and VBR mode

18.WEB Management

19.Easy-to-Use System Management
