24ch CVBS IPTV enconder, Multi-screen iptv streaming encoder

FOB Price

USD $1,000 - $7,500 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai/Hangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	Caster-T300H

Product Description

Caster-T300H high-performance standard definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner.a real-time multi-channel,codec,format IP-based encoder for multi- screen delivery(TV, Mobile, and Web). With the support for various encapsulation formats base on embedded Linux operating system appliances. It relies on an Intel 16 or more Core CPU as an accelerator.

Caster-T300H can push /pull an MPEG-2,H.264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/ HTTP/RTP protocols.

Feature

1.Up to 12/18/24 Composite,R/L analog audio per chassis

2.Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.

3.Multiple output streams per input service to support Broadcast,VOD,IPTV and OTT,mobile/ web,Set top box applications

4.SD MPEG4/H.264/MPEG-2 to any resolution encoding

5.Mulltiple Codec,Protocol,Bitrate,Resolution, Profile per channel

6.GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP

7.M3u8 playlist files

8.Audio support: AAC,MPEG,MP3 or Dolby Digital AC-3 passthrough

9.High quality pre-processing including filtering,Deinterlacing,cross scaling,image insertion

10.Based on embedded unbuntu Linux

11.Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps for lowest bitrate

12.Selectable any resolution from QSIF to 576p

13.Easy-to-Use System Management

14.Web Management

INPUTS

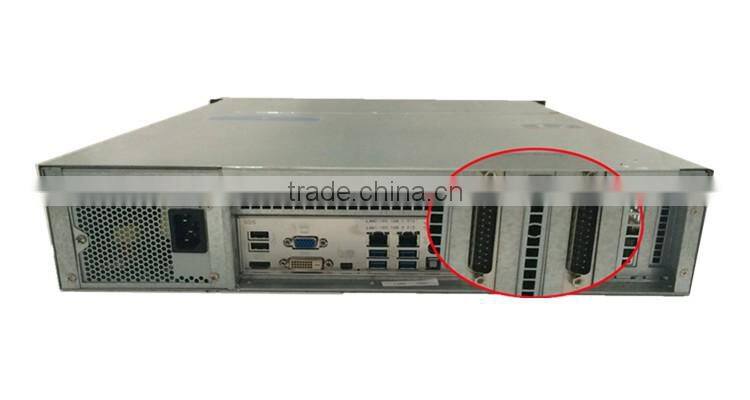

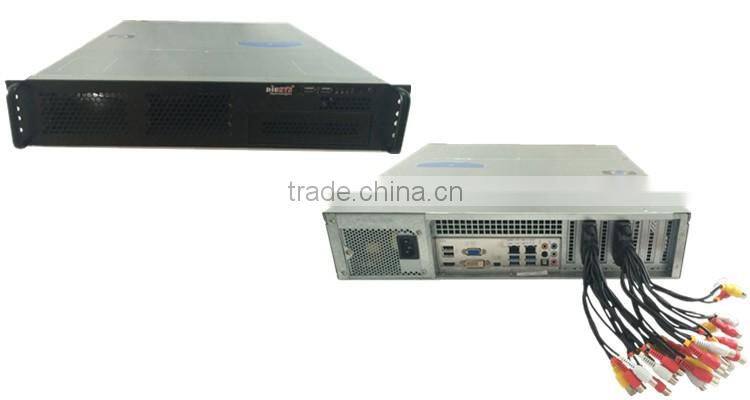

Baseband input	12x Composite,R/L analog audio
	18x Composite,R/L analog audio
	24xComposite,R/L analog audio

OUTPUTS
IP Output type	Two Gig Ethernet Ports
ASI output type	Mutliplexed (optional)
Streaming format	Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP; MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3 TS Over UDP/RTP/HTTP 3GP Over RTP FLV Over HTTP/RTMP HTTP Live streaming Apple HLS (m3u8)

File Output
Encoding	3GPP/3GPP2/WMV/FLV/TS
	File output support timing and capacitive record

Pre-processing
Image setting	Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate	from 2fps to 30fps
Aspect ratio	4:3 and 16:9, WSS control
Image insertion	LOGO insertion
Subtitle Overlay	Static or roll subtitle, up to 3 way (optional)
PID Configuration	Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.

Video encoding
Bitrate mode	VBR,CBR
Resolutions	80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240 352x288 • 400x300 • 480x360 • 720x576 • 854x480(16:9)
Max channels per RU	Singal Input	H.264 Out	Channels	Notes
	CVBS	SD in 1.5Mbps	12 streams	Take those information as reference only,For details contact us
			Up to 96 streams
			Up to 24 streams
	Up to multiple concurrent outputs per one stream input
Video codec	H.263 Profile0, Levels 10,20,30 MPEG-4 SP, Levels 0,0b, 1,2,3 H.264 Baseline Levels 1,1b,2,3; H.264 Main Profile/High Profile 3.0- 5.1 MPEG-2 MP@ML 4:2:0
GOP Size	I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate	32kbps to 4Mbps
Enhancement filter	Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing

Audio encoding
Audio encoding	LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo) MPEG-1 Layer, AC3,MP3
Sample rate	8khz to 48khz
Data rate	8kbps to 384kbps

Management
Interfaces	LCD display, key button, WEB

Environment
Power Supply	110-240 VAC
Power consumption	50W
Operation temperature	0 -50°C (32 -122°F)
Storage temperature	-40-70°C (-40-158°F)
Dimensions	483mm (W) x 534mm (L) x 45mm (H)
Weight	11kg(24lbs)

Multiscreen SD Encoder
Caster-T305	Up to 4 SDI inputs
Caster-T305H	Up to 8 SDI inputs

Multiscreen HD Encoder
Caster-T310	Up to 1,2,4x HDMI inputs
Caster-T310H	Up to 8x HDMI inputs
Caster-T315	Up to 1,2,4x HD-SDI inputs

Multiscreen Transcoder
Caster-T320D	Two ports GigE IP in/ out: up to 8x SD ,10x SD, 12x SD streams out
Caster-T322	Two ports GigE IP in/ out: up to 20x SD streams out
Caster-T324	Two ports GigE IP in/ out: up to 60x SD streams out
