Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dibsys | |
| Model Number | ENC3111 |
Product Description
ENC3111 simultaneously encodes video/audio feeds as MPEG-2 SD 4:2:0 and MPEG-4 AVC (H.264) SD 4:2:0,using MPEG-1 Layer-II,LC_AAC, HE-AAC V2 audio ed to address this ever increasing demand for more video and audio services. With efficient bitrate utilization,high reliability and advanced compress arithmetic,it possible to transmit high quality video content at the lowest possible bandwidth. And produce ASI and IP output data streams.
ENC3111 encoder supports up to two quality stereo audio channels (or up to 4 mono channels) as either embedded XLR or two analog stereo channels inputs
Feature

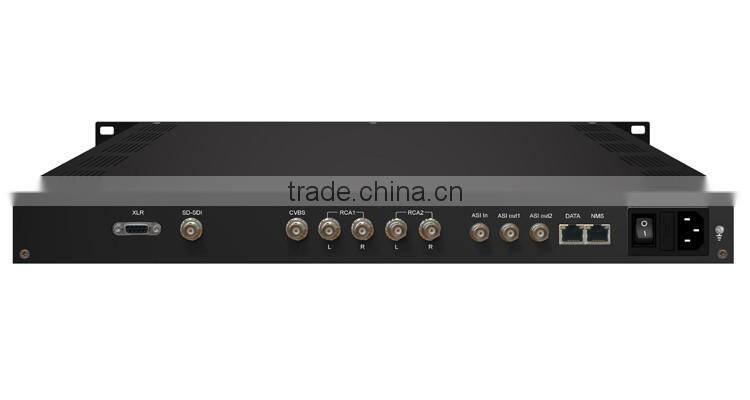

1.1 channel Composite,SD-SDI and 2 pairs R/L analog audio and XLR per chassis
2.Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0(H.264)
3.Up to 2 audio stereo channels or 4 mono channels
4.ASIC technologies which offer broadcast video quality, generally for SD about 2.5mbps(MPEG -2) ,800kbps(H.264) for ultra-low bitrates
5.MPEG-1 Layer,LC_AAC, HE_AAC V2 audio,encoding
6.Simultaneous outputs via IP, DVB-ASI
7.Range of encoding of video: 0.25~7Mbps (H.264); 0.5~7Mbps(MPEG-2)
8.Advanced multiplexing capabilities for cascading and multi-services via ASI input
9.Simultaneous outputs via SPTS/MPTS over IP
10.Audio sample rate: 32/44.1/48KHz
11.Screen ratio:16:9;4:3
12.Management via SNMP and local front panel
13.VBR/CBR video bitrate Mode
14.Easy to operate a cost-efficient standalone
